ENGINE CONTROL SYSTEM: Circuit Diagram

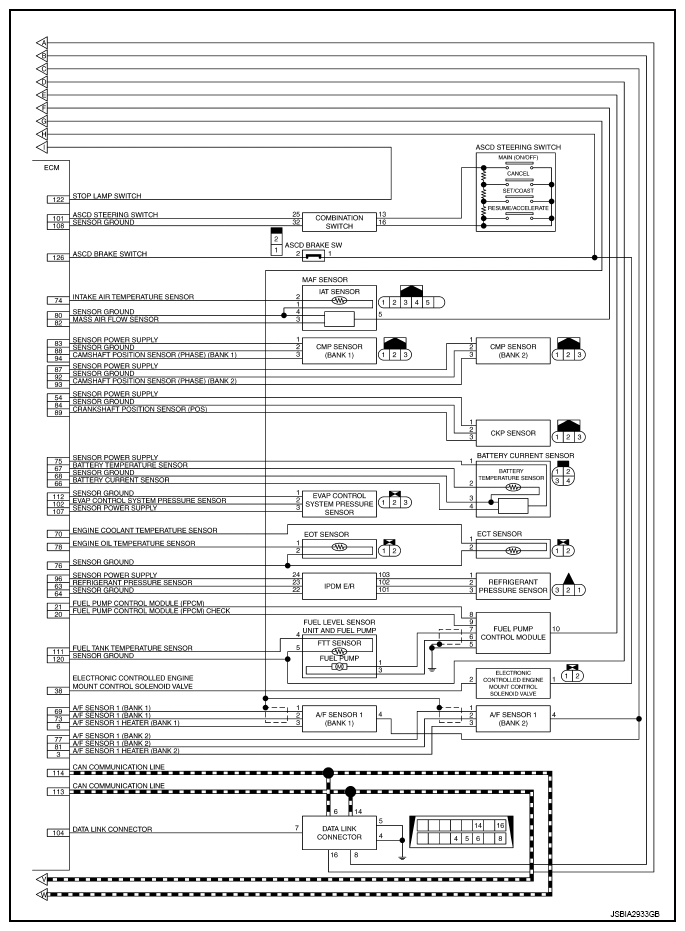

Fig 1: Engine Control System Circuit Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

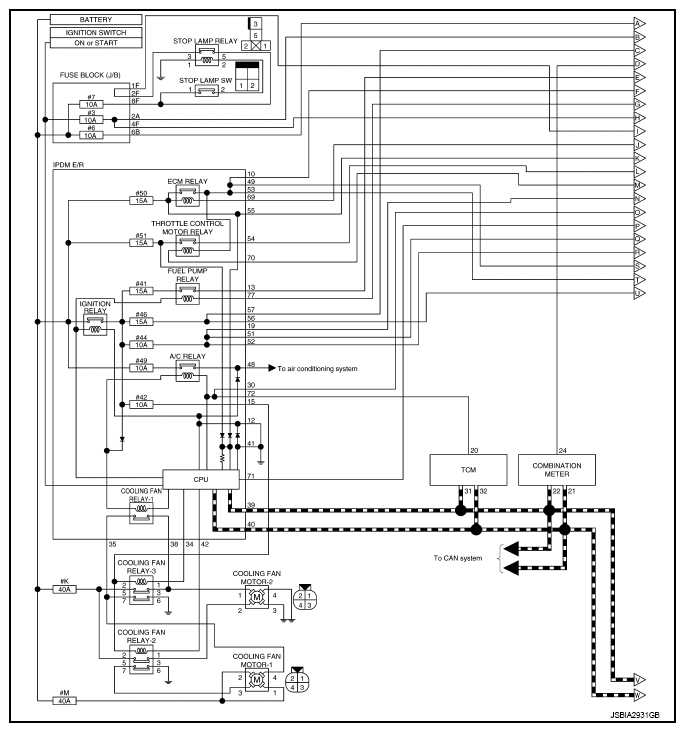

Fig 2: Engine Control System Circuit Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Engine Control System Circuit Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Engine Control System Connectors End View

Courtesy of NISSAN NORTH AMERICA, INC.
