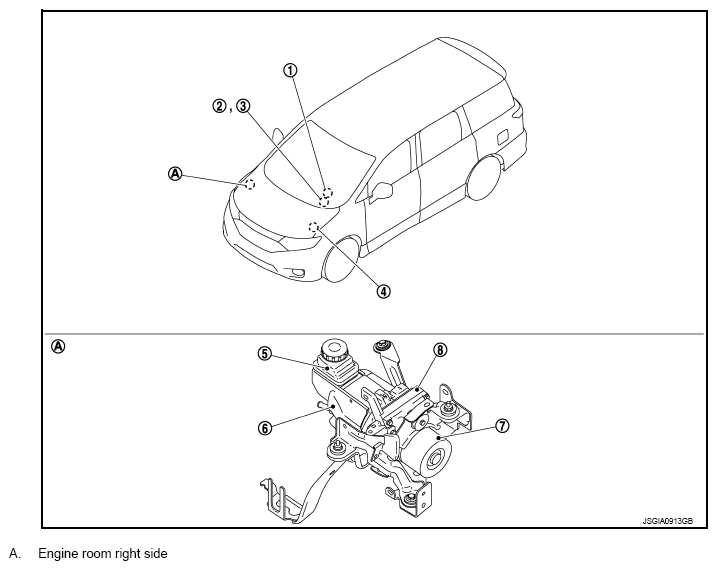

| 1. |
Steering angle sensor |
Transmits mainly the following signals to power steering control module via CAN communication.
- Steering angle sensor signal
|
| 2. |
Combination meter |
Transmits mainly the following signals to power steering control module via CAN communication.
|
| The hydraulic pump electric power steering system warning lamp turns ON according to the signal received by CAN communication from the power steering control module. |
| 3. |
Hydraulic pump electric power steering system warning lamp (In combination meter) |
"HYDRAULIC PUMP ELECTRIC POWER STEERING SYSTEM: SYSTEM DESCRIPTION " |
| 4. |
ECM |
Transmits mainly the following signals to power steering control module via CAN communication.
|
| 5. |
Power steering oil pump assembly |
Reservoir tank |
"POWER STEERING OIL PUMP ASSEMBLY " |
| 6. |
Power steering oil pump |
| 7. |
Power steering motor |
| 8. |
Power steering control module |
