Exploded View

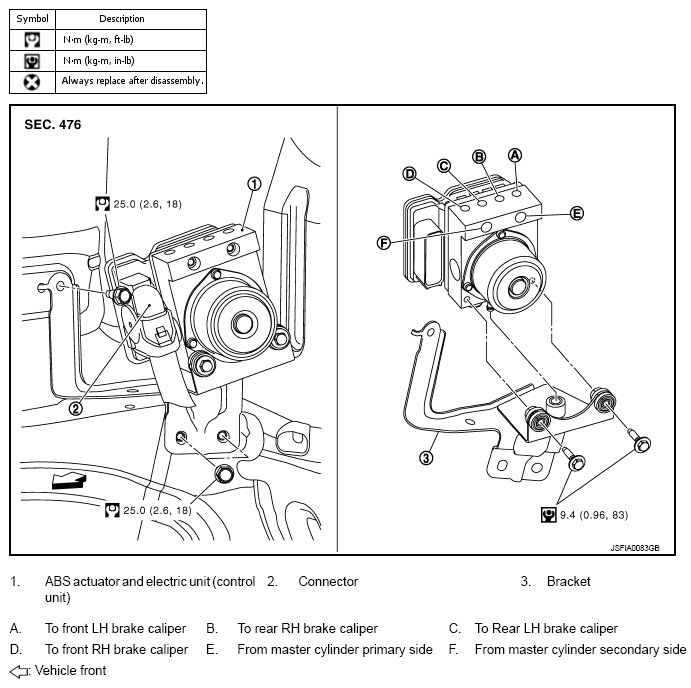

Fig 1: Exploded View ABS Actuator And Electric Unit With Torque Specifications

G08987827

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol in the figure.
