IGNITION TIMING: Special Repair Requirement

CHECK IGNITION TIMING
1. Attach timing light (A) to No. 1 ignition coil wire as shown below.
  - ←: Vehicle front

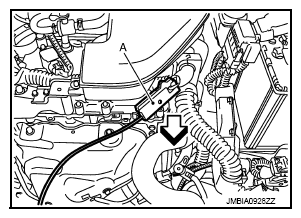

    Fig 1: Attaching Timing Light
    Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.
  - Timing indicator (1)
    : INSPECTION END

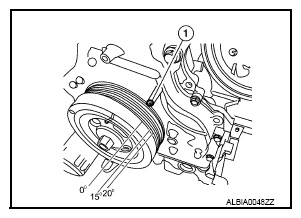

    Fig 2: Locating Timing Indicator
    Courtesy of NISSAN NORTH AMERICA, INC.
