AWD: Exploded View
AWD: Exploded View

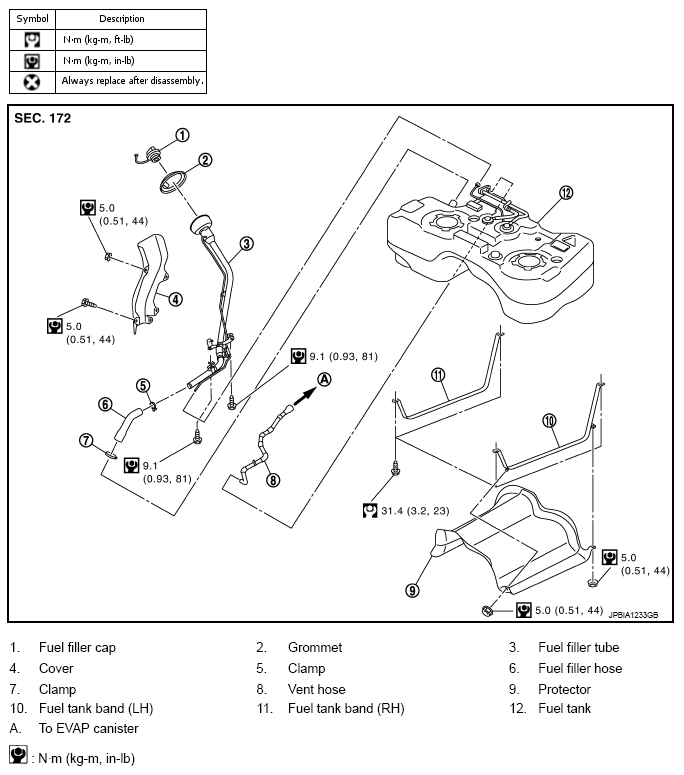

Fig 1: Exploded View Of Fuel Tank (AWD)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
