Nissan-Datsun
›
2013
›
Sentra FE+S
›
Repair and Diagnosis
›
Body & Frame
›
Seats
›
Removal And Installation
›
Rear Seat
›
Exploded View
Exploded View

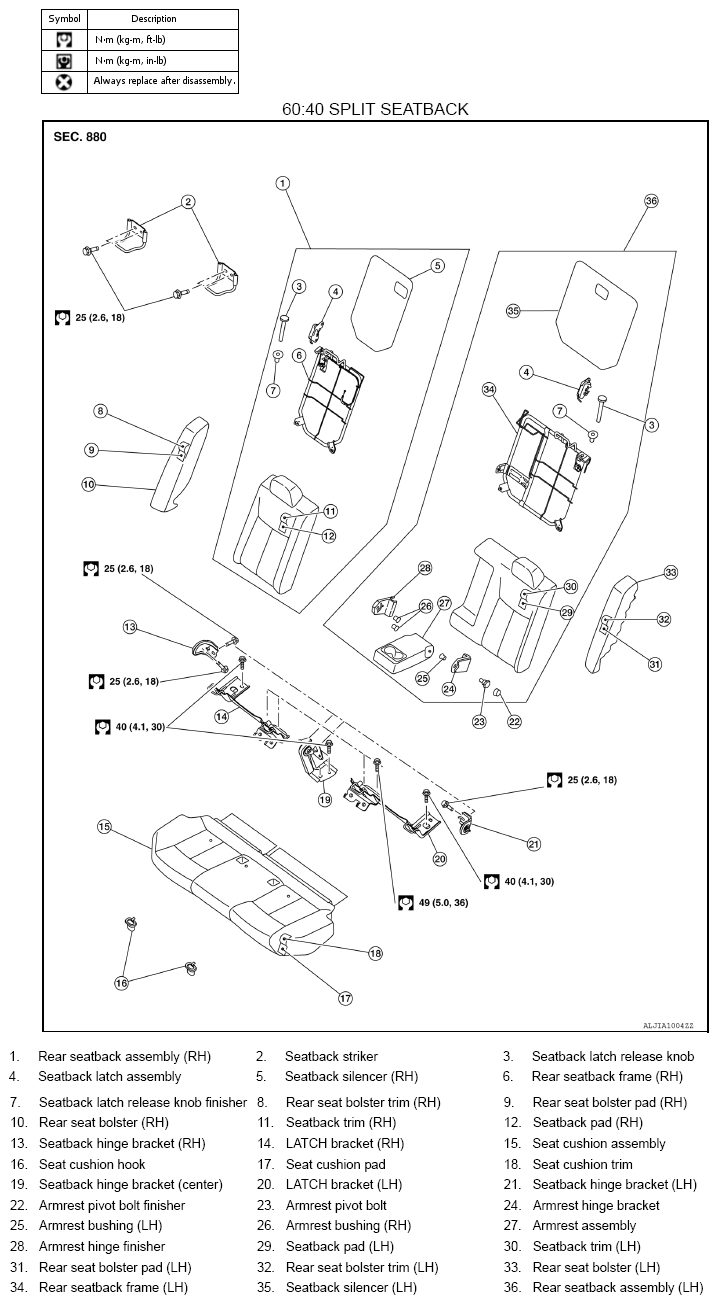

Fig 1: Exploded View Of Rear Seat (60:40 Split Seatback) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
