DRIVER SIDE: Side Air Bag Module: Disassembly

Remove the front seat assembly. Refer to "DRIVER SIDE: REMOVAL AND INSTALLATION - SEAT ASSEMBLY ".
Remove the headrest.
Release the lower seatback trim retainer straps (D) from the seat frame assembly.
Unzip the seatback zippers (B), then release the J-hook retainers (C) and (A).

Fig 1: Identifying Seatback Zippers, Strappers And J-Hook Retainers
Courtesy of NISSAN NORTH AMERICA, INC.
Unclip the side air bag module harness from the seat frame assembly.
NOTE: Take note of harness routing and attachment location for accurate installation.
Disconnect the harness connector from the seatback heater (if equipped).
Remove the seatback assembly from the seat frame assembly.
1. Release the headrest holder locks as shown and remove the headrest holders.
  CAUTION: Before removing/installing the headrest holder, check its orientation (front/rear and right/left).

  Fig 2: Removing Headrest Holder
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Remove and discard the side air bag module nuts (A).
  CAUTION: Do not reuse the side air bag module nuts.

  (1): Side air bag module

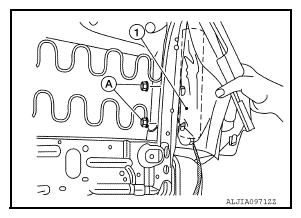

  Fig 3: Removing Side Air Bag Module Nuts Using Suitable Tool
  Courtesy of NISSAN NORTH AMERICA, INC.
3. Disengage the side air bag module studs from the seat frame assembly and lift the seatback trim and seatback pad as an assembly from the seat frame assembly.
Open the seatback trim and release the side air bag module studs (A) from the holes in the chute (B).
Pull the side air bag module (1) out of the chute (B) and remove from the seatback trim.

Fig 4: Identifying Side Air Bag Module, Stud And Chute
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Replace the side air bag module if it has been dropped or sustained an impact.
- Do not strike the side air bag module.
Fig 5: Caution For Handling Side Air Bag Module
Courtesy of NISSAN NORTH AMERICA, INC.
