Connector End Views

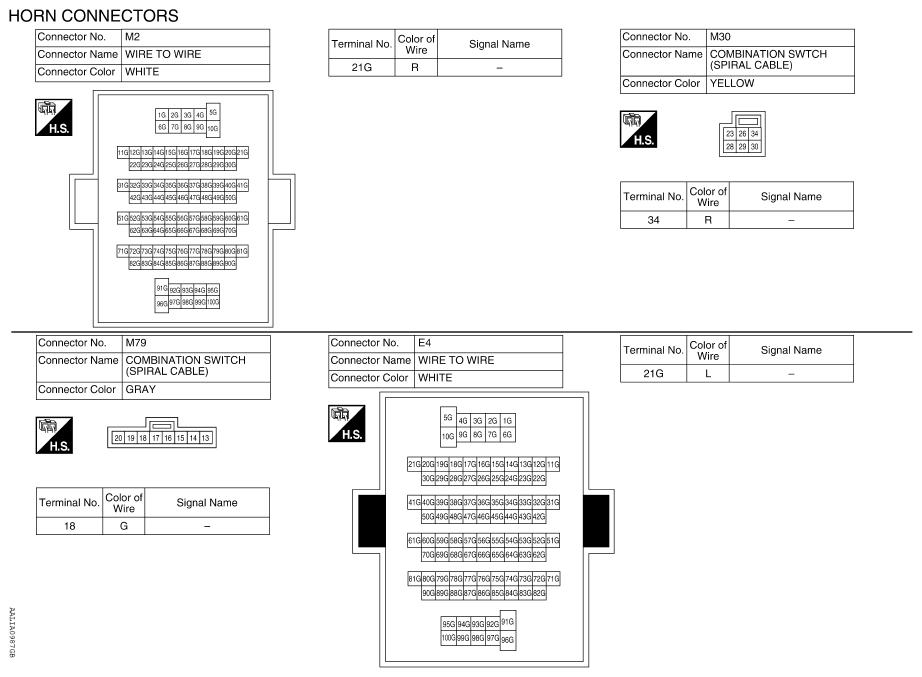

Fig 1: Horn Connector End Views (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

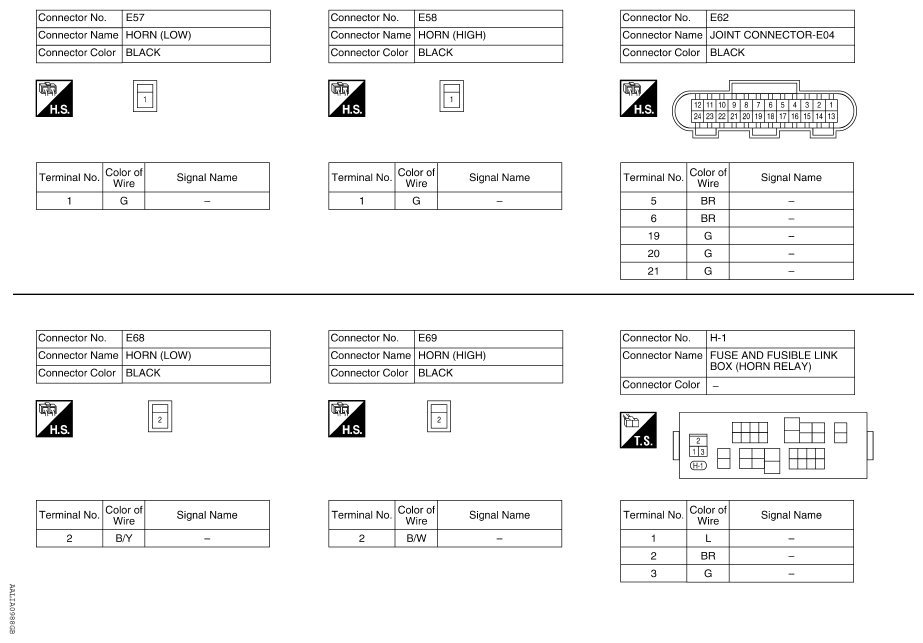

Fig 2: Horn Connector End Views (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
