Engine Control System (Diagnostic Codes & Symptom Tests)
›
Symptom Diagnosis
›
Engine Control System
›
Symptom Table
›
System - Engine Mechanical&Other
System - Engine Mechanical&Other

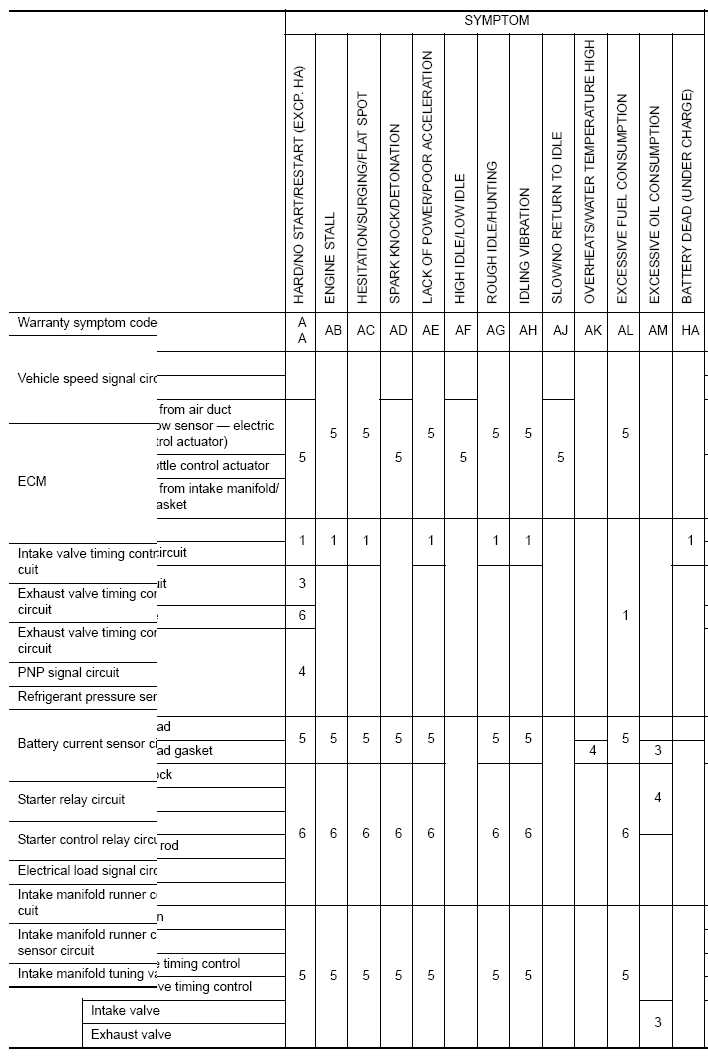

Fig 1: Warranty Symptom Code Chart (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

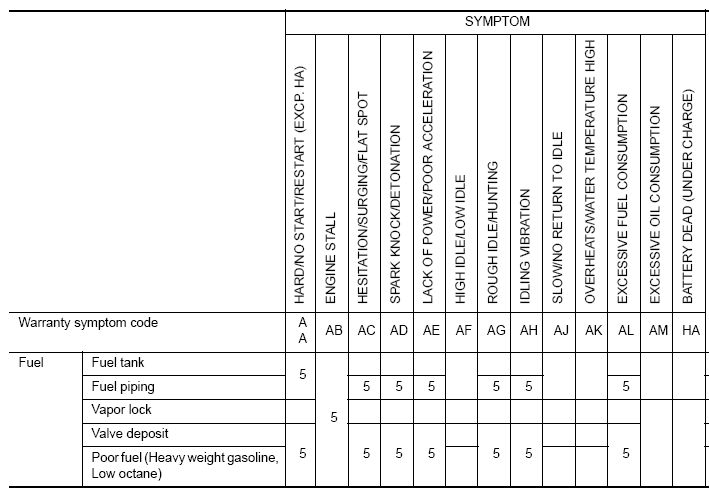

Fig 2: Warranty Symptom Code Chart (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

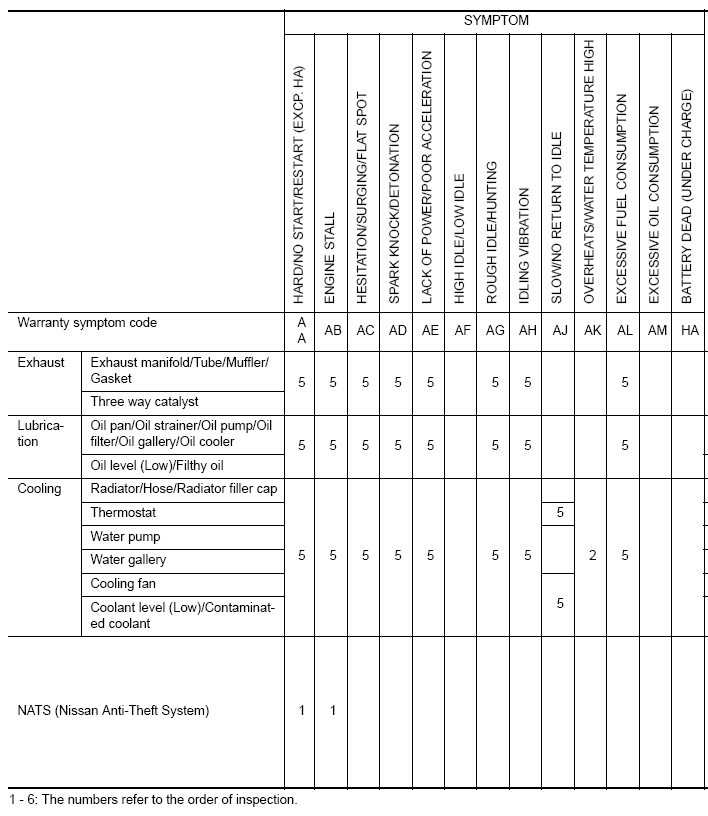

Fig 3: Warranty Symptom Code Chart (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
