Nissan-Datsun
›
2013
›
Sentra FE+S
›
Repair and Diagnosis
›
Steering
›
Power Steering
›
Steering System
›
Unit Disassembly And Assembly
›
Steering Gear And Linkage
›
Exploded View
Exploded View

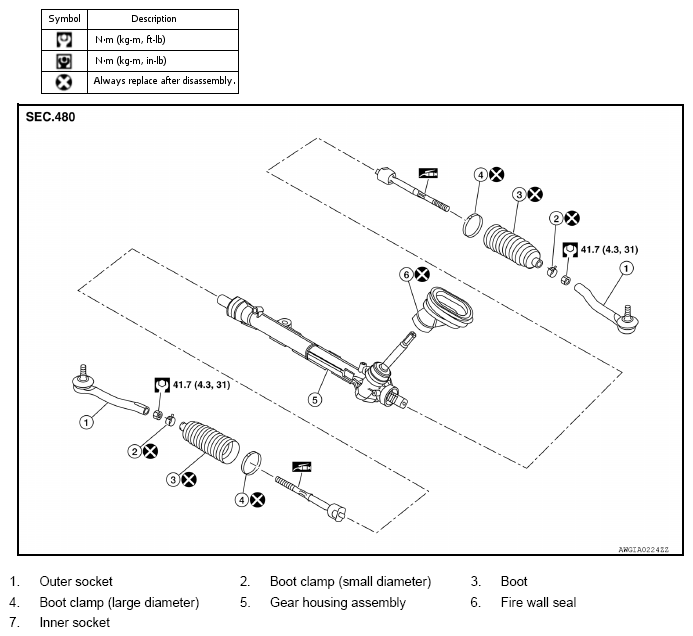

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
