Removal and Installation: Removal

  1. Disconnect the negative battery terminal. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove instrument lower panel LH and instrument side finisher LH. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove fuse block (J/B) screws (A) and position (BCM) aside.
    Fig 1: Identifying Fuse Block Screws
    G08991692Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove harness clip (A).
    Fig 2: Identifying Harness Clip
    G08991693Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove the screws (A) from the BCM (1).

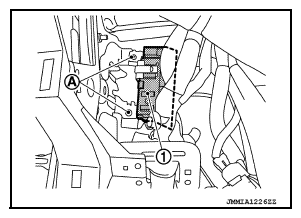

    Fig 3: Identifying BCM And Screws
    G08991694Courtesy of NISSAN NORTH AMERICA, INC.
  6. Disconnect the harness connectors and remove the BCM.
