Security Control System (With Intelligent Key)
›
System Description
›
System
›
Intelligent Key System/Engine Start Function
›
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION: System Description
›
System Diagram
System Diagram

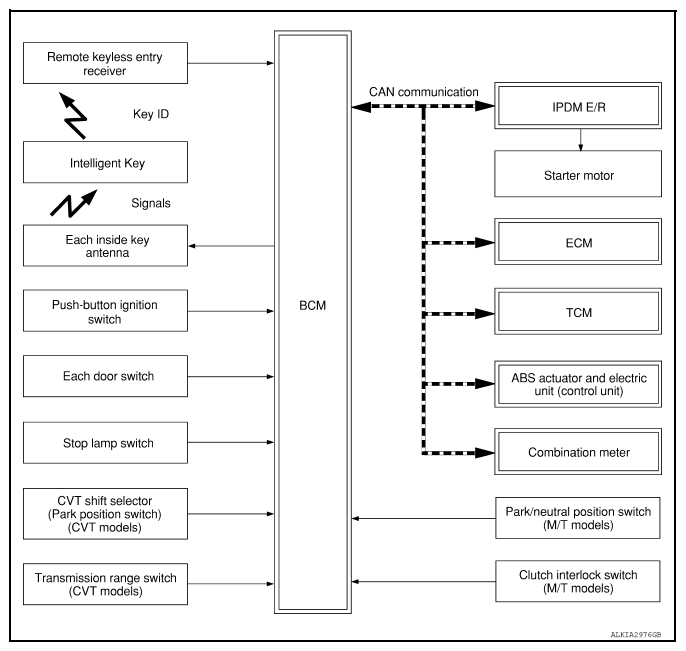

Fig 1: Intelligent Key System/Engine Start Function - System Diagram
