Intelligent Key System/Engine Start Function: Wiring Diagram

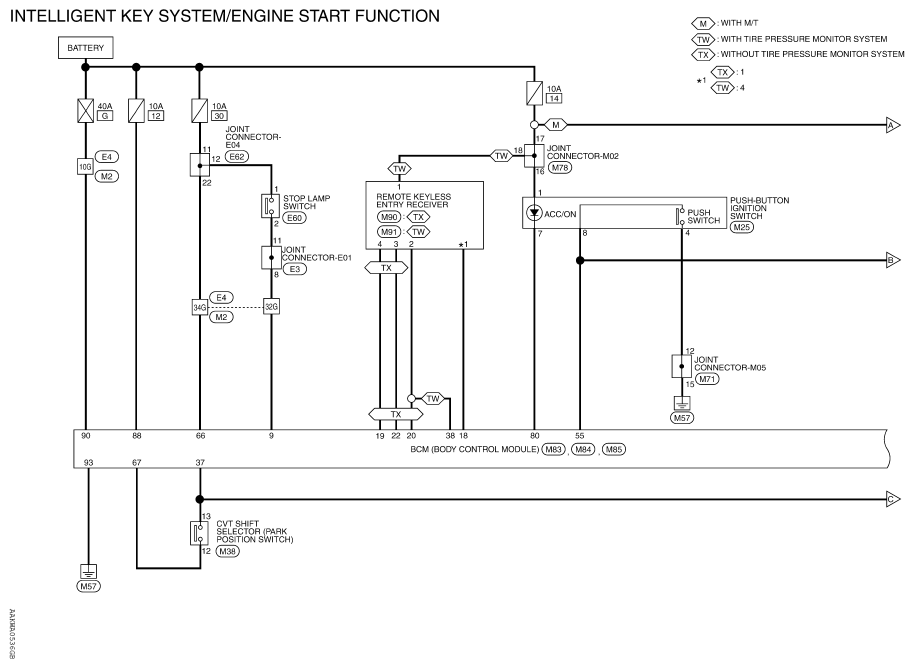

Fig 1: Intelligent Key System/Engine Start Function - Wiring Diagram (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

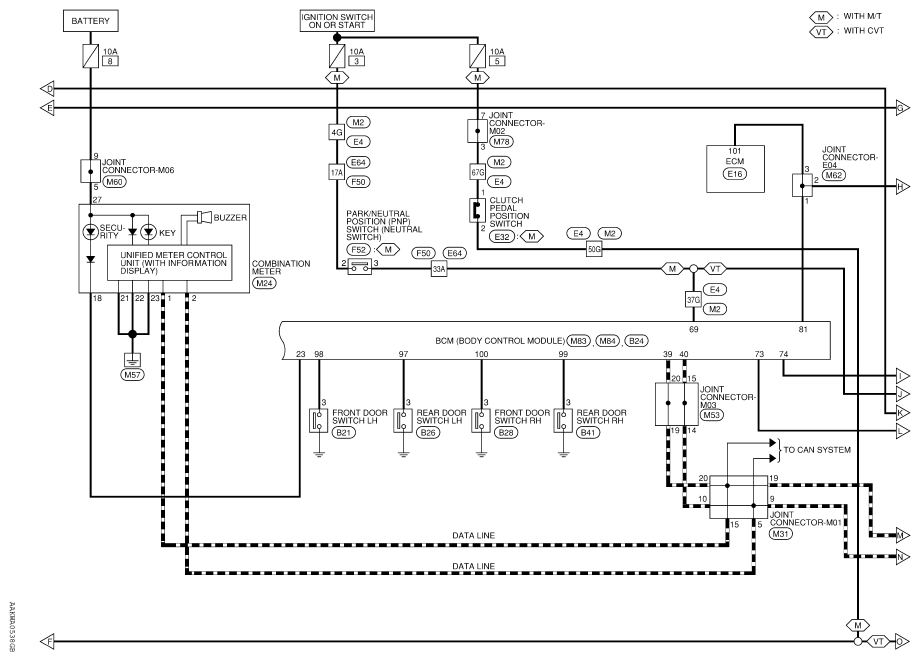

Fig 2: Intelligent Key System/Engine Start Function - Wiring Diagram (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

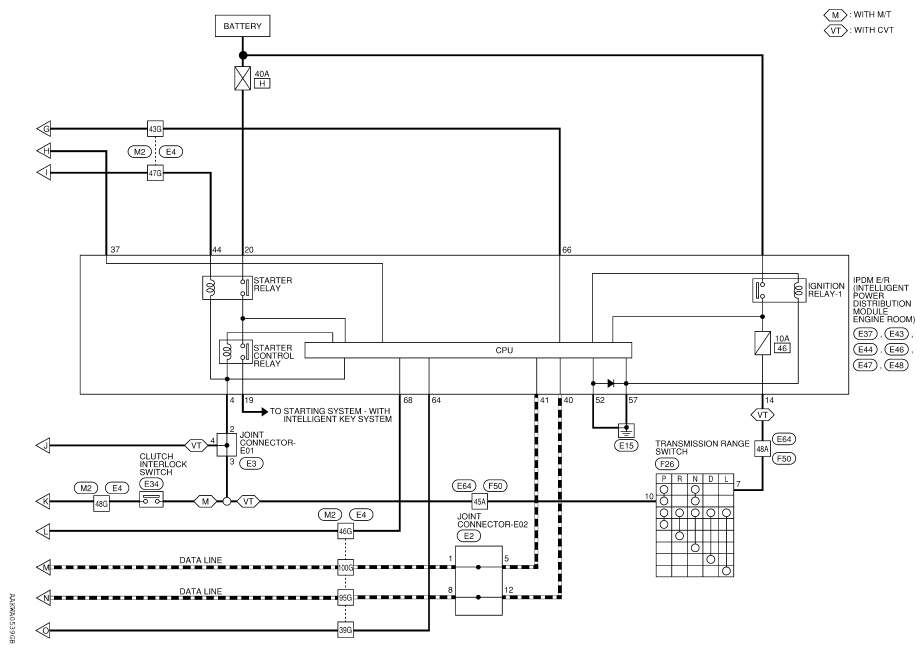

Fig 3: Intelligent Key System/Engine Start Function - Wiring Diagram (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

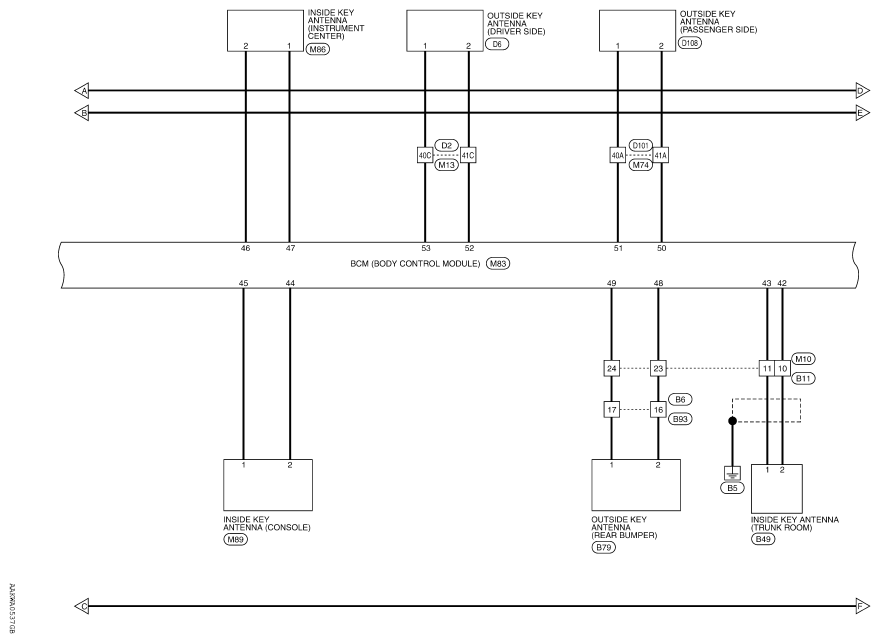

Fig 4: Intelligent Key System/Engine Start Function - Wiring Diagram (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
