IPDM E/R Relays

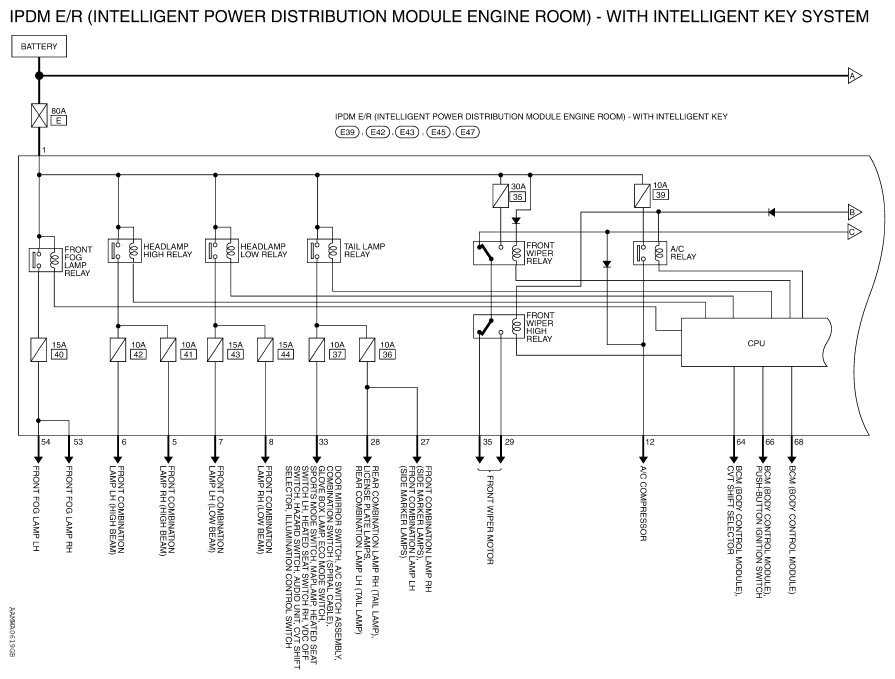

IPDM E/R (WITH I-KEY) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Front Fog Lamp Relay |
| Headlamp High Relay |
| Headlamp Low Relay |
| Tail Lamp Relay |
| Front Wiper Relay |
| A/C Relay |
| Front Wiper High Relay |
|
CAUTION:
IPDM E/R Integrated Relays Cannot Be Removed.
|

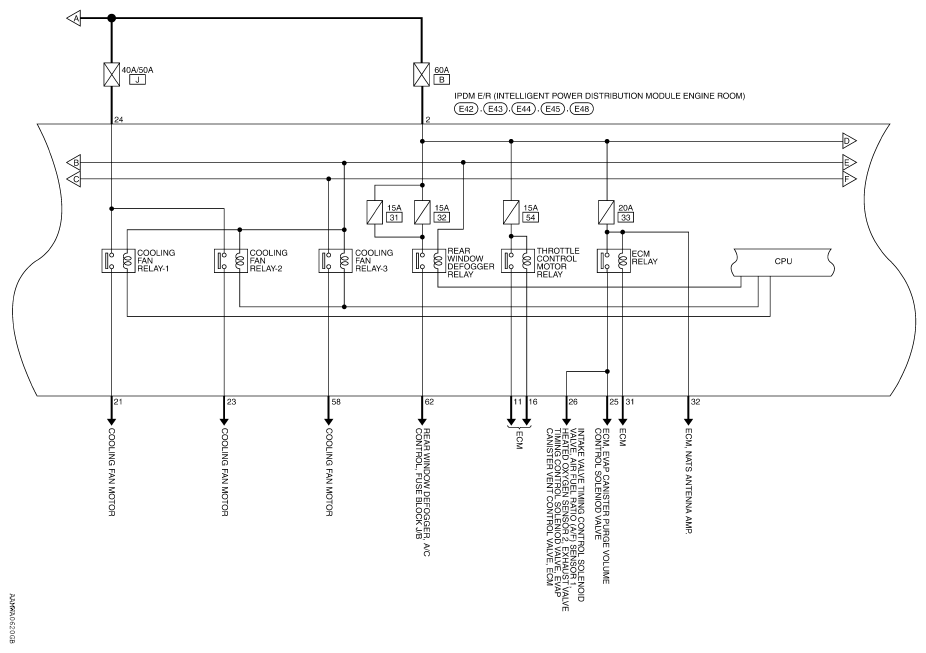

IPDM E/R (WITH I-KEY) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Cooling Fan Relay - 1 |
| Cooling Fan Relay - 2 |
| Cooling Fan Relay - 3 |
| Rear Window Defogger Relay |
| Throttle Control Motor Relay |
| ECM Relay |
|
CAUTION:
IPDM E/R Integrated Relays Cannot Be Removed.
|

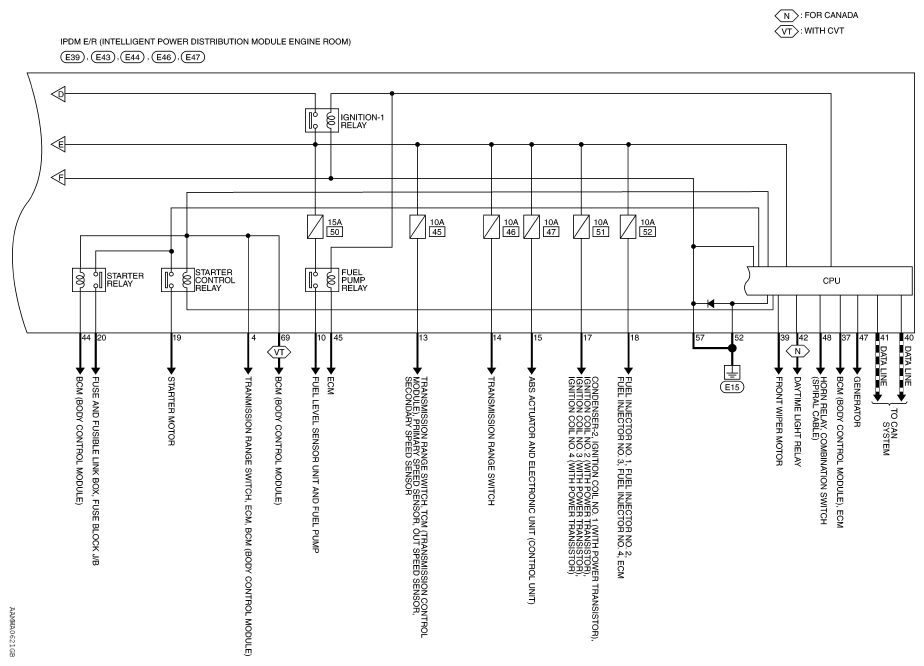

IPDM E/R (WITH I-KEY) RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Ignition - 1 Relay |
| Starter Relay |
| Starter Control Relay |
| Fuel Pump Relay |
|
CAUTION:
IPDM E/R Integrated Relays Cannot Be Removed.
|
