FixVault
Home
›
Nissan-Datsun
›
2013
›
Sentra SL
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Removal And Installation
›
Generator
›
Exploded View
Exploded View

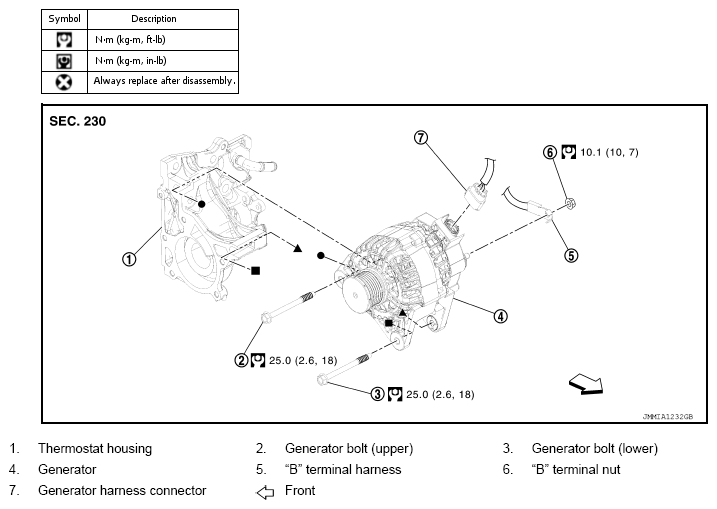

Fig 1: Exploded View Of Generator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
