Repair and Diagnosis
›
Electrical
›
Starter
›
Starting System
›
Removal And Installation
›
Starter Motor
›
Exploded View
Exploded View

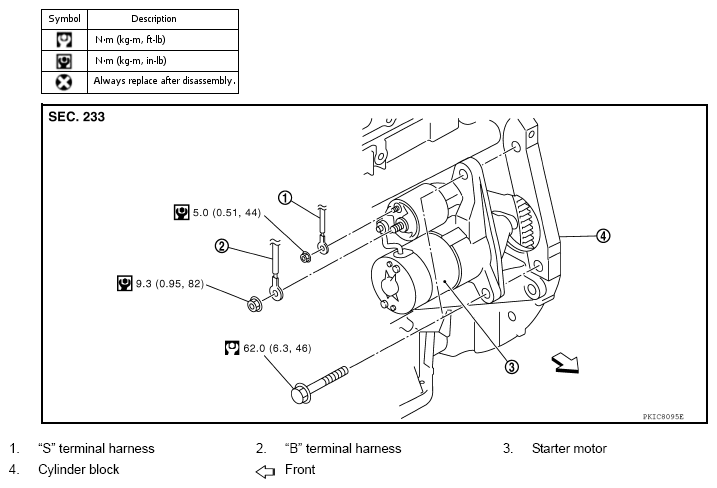

Fig 1: Exploded View Of Starter Motor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
