Exploded View

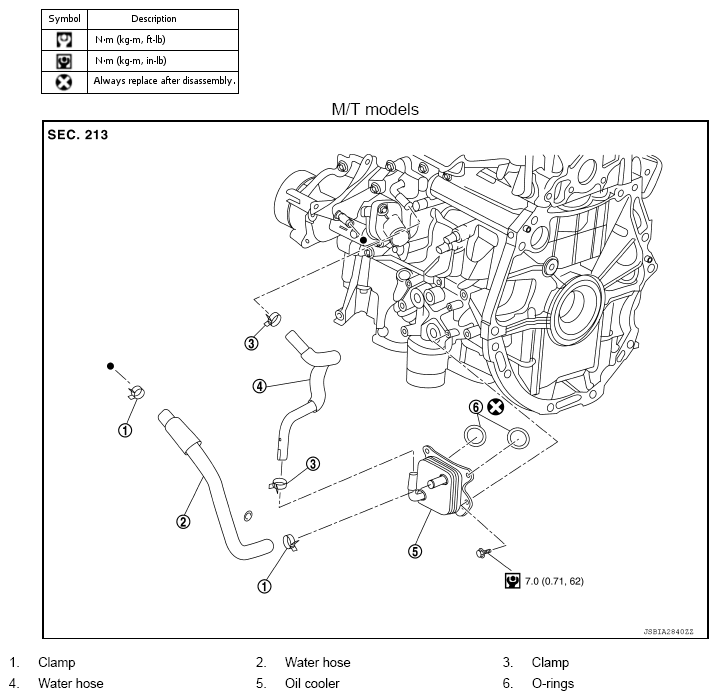

Fig 1: Exploded View Of Oil Cooler (M/T Models) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

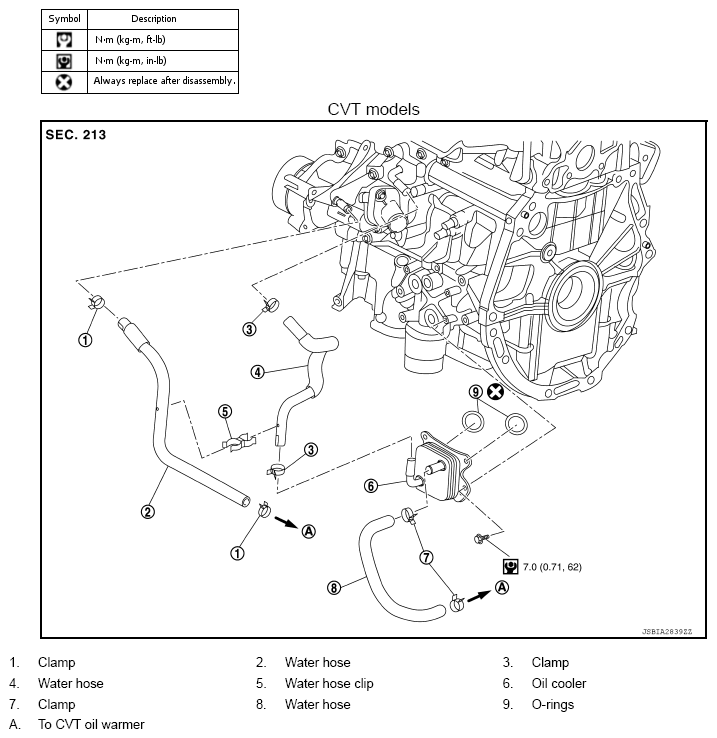

Fig 2: Exploded View Of Oil Cooler (CVT Models) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.
