Oil Pump: Notes

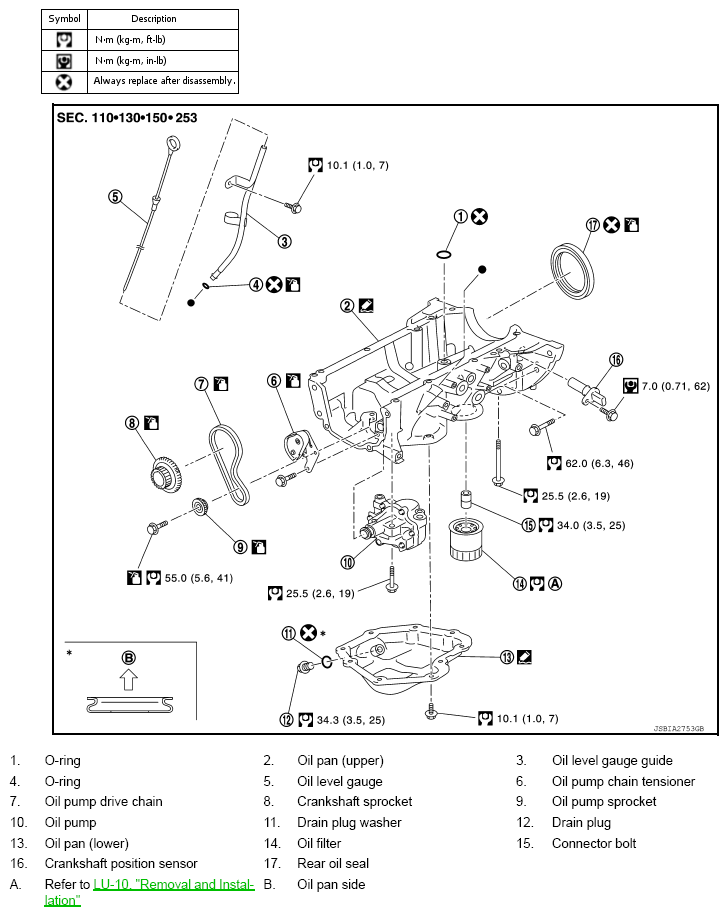

Fig 1: Disassembled View Of Oil Pump
G08989094Courtesy of NISSAN NORTH AMERICA, INC.
