Nissan-Datsun
›
2013
›
Sentra SL
›
Repair and Diagnosis
›
Engine Mechanical
›
Starter
›
Starting System
›
Wiring Diagram
›
Starting System (With Intelligent Key)
›
Connector End Views
Connector End Views

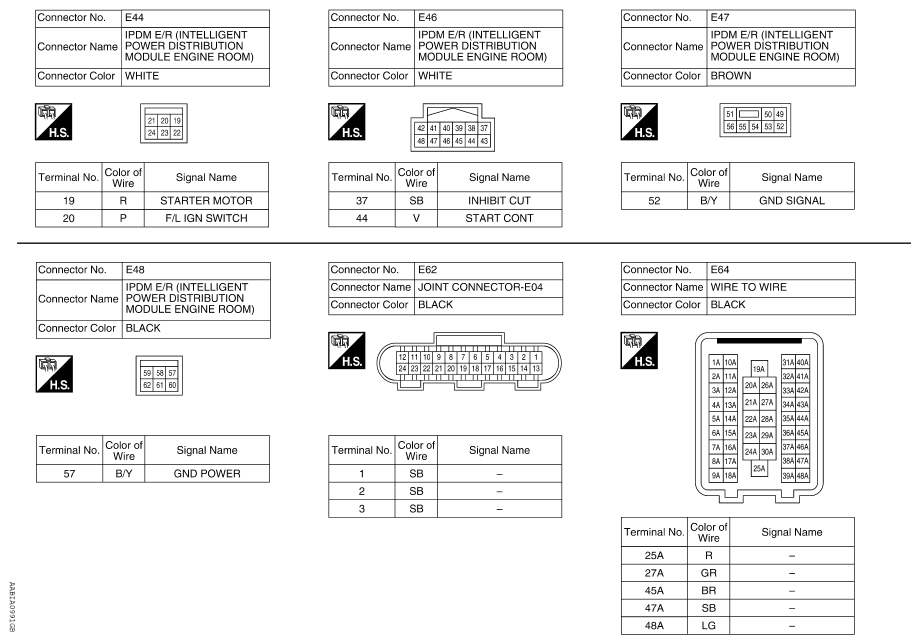

Fig 1: Starting System Connector End Views - With Intelligent Key (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

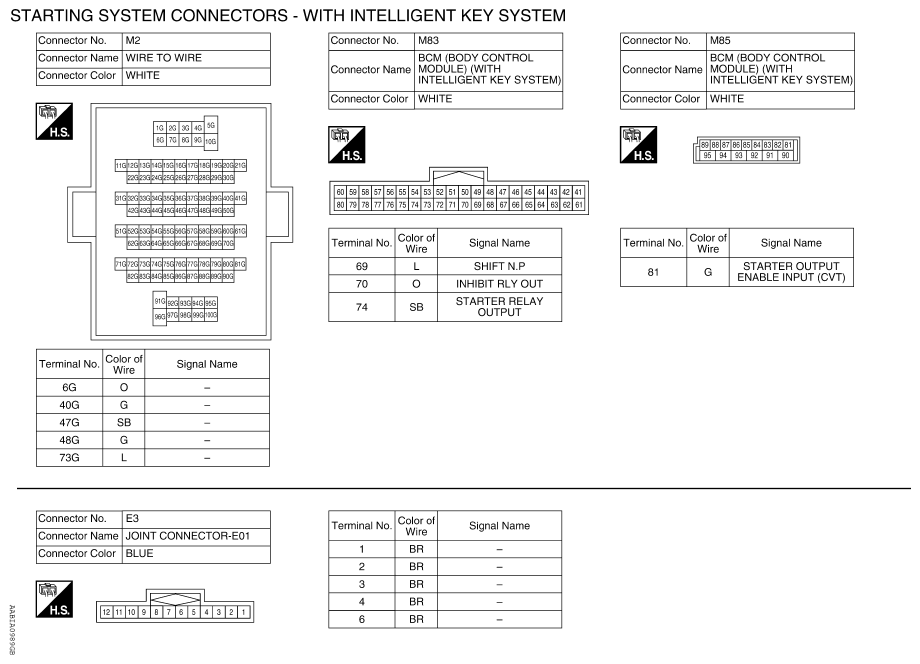

Fig 2: Starting System Connector End Views - With Intelligent Key (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

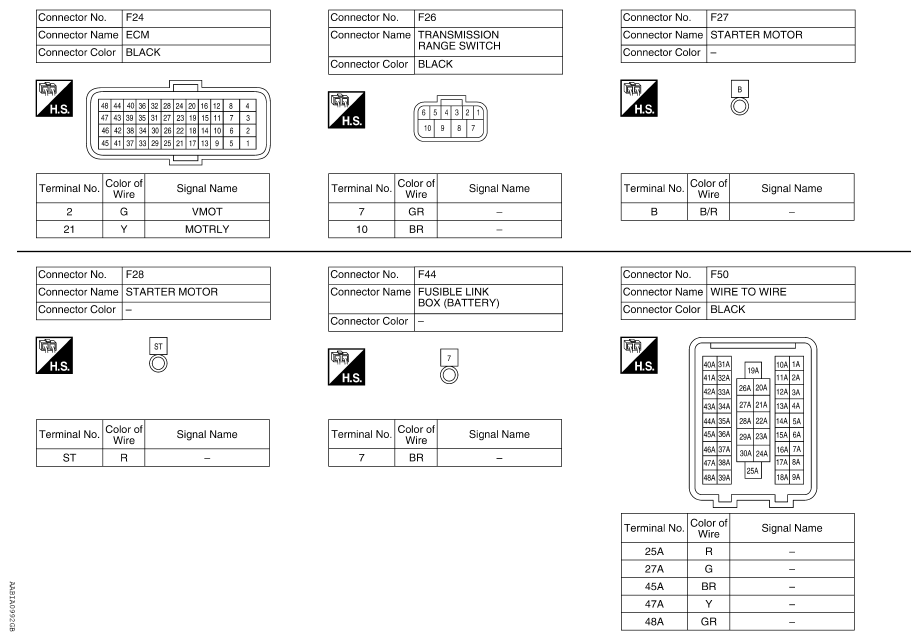

Fig 3: Starting System Connector End Views - With Intelligent Key (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

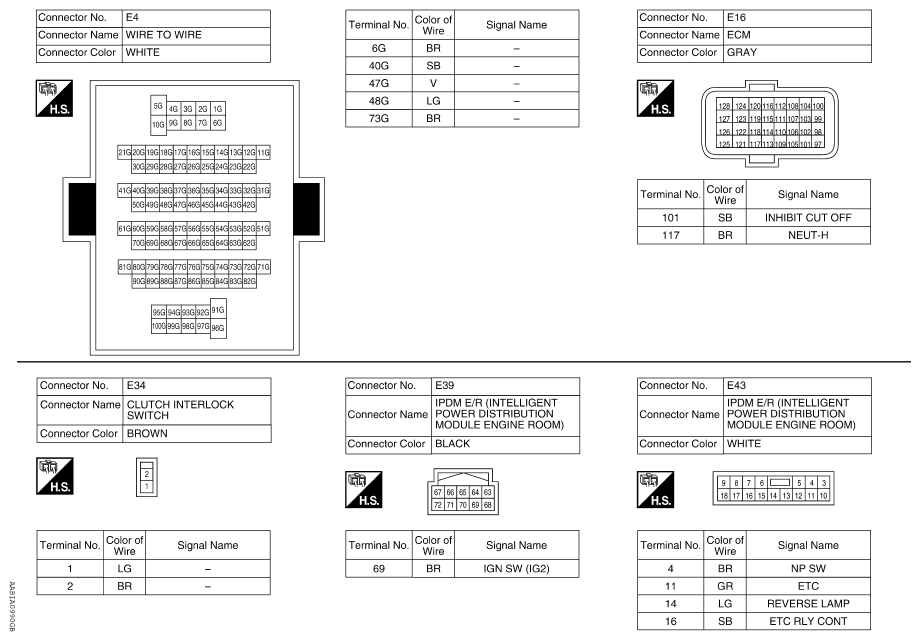

Fig 4: Starting System Connector End Views - With Intelligent Key (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
