Exploded View

WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

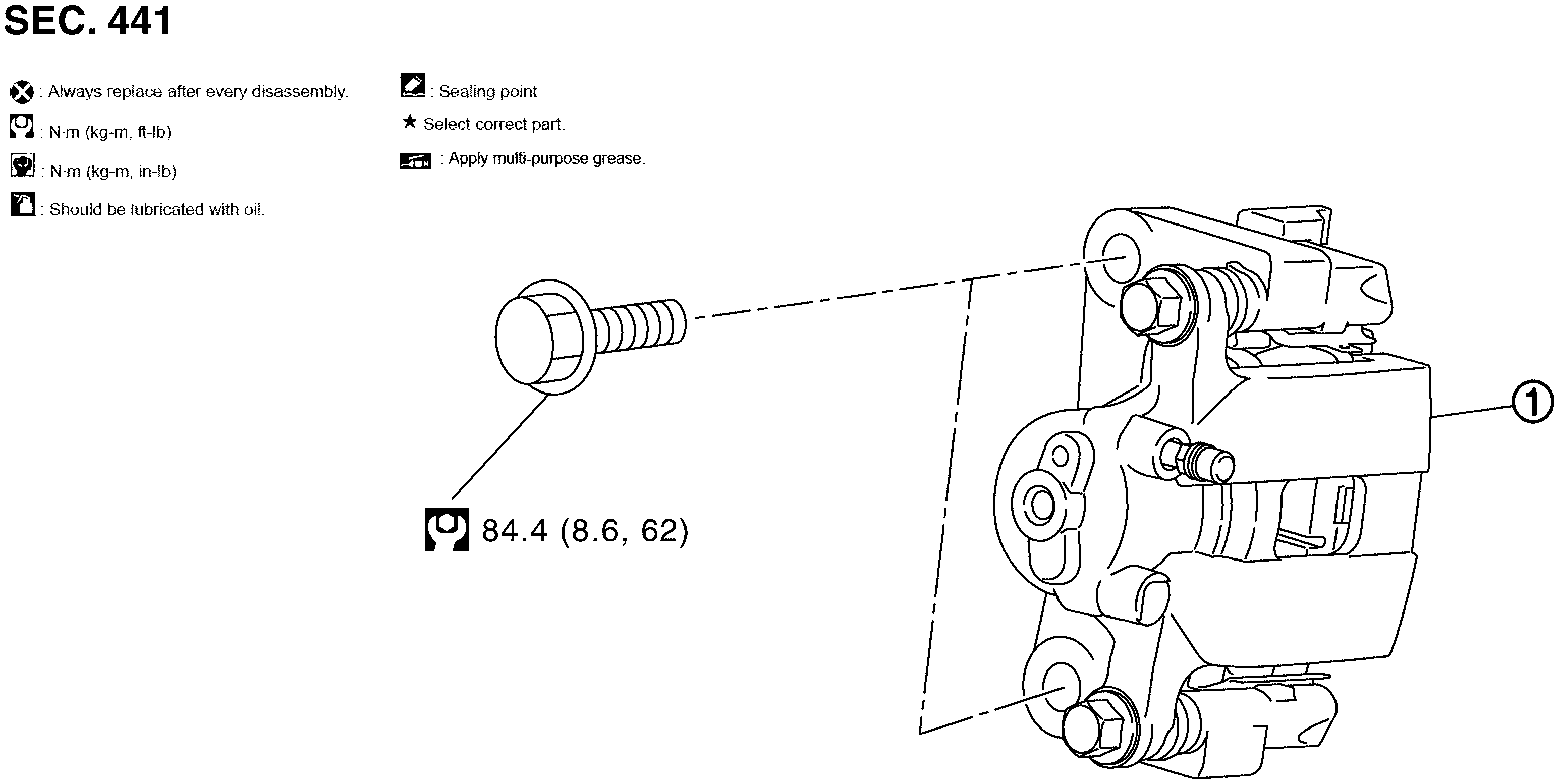

Fig 1: Rear Brake Caliper Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Brake caliper assembly
