Front Suspension Member
›
Exploded View
Exploded View
Fig 1: Exploded View Of Front Suspension Member With Torque Specifications (CVT)
Courtesy of NISSAN NORTH AMERICA, INC.

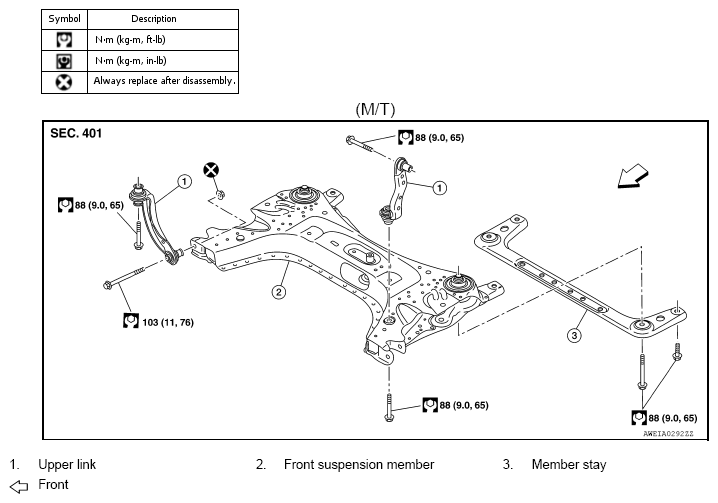

Fig 2: Exploded View Of Front Suspension Member With Torque Specifications (M/T)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
