Repair and Diagnosis
›
Transmission
›
Automatic Transmission (CVT)
›
Removal And Installation
›
CVT Shift Selector
›
Exploded View
Exploded View

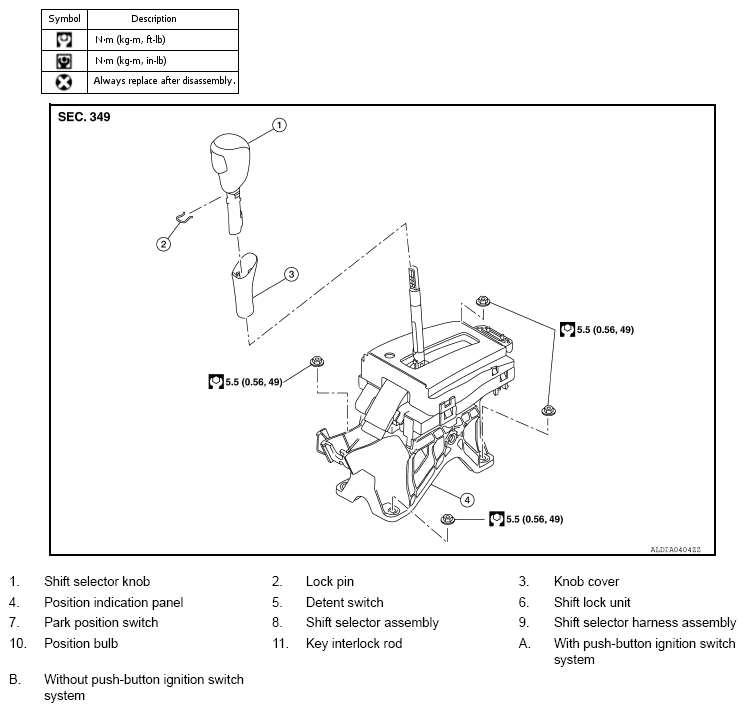

Fig 1: Exploded View Of CVT Shift Selector With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
