Nissan-Datsun
›
2013
›
Sentra SL
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission (CVT)
›
Removal And Installation
›
Output Speed Sensor
›
Exploded View
Exploded View

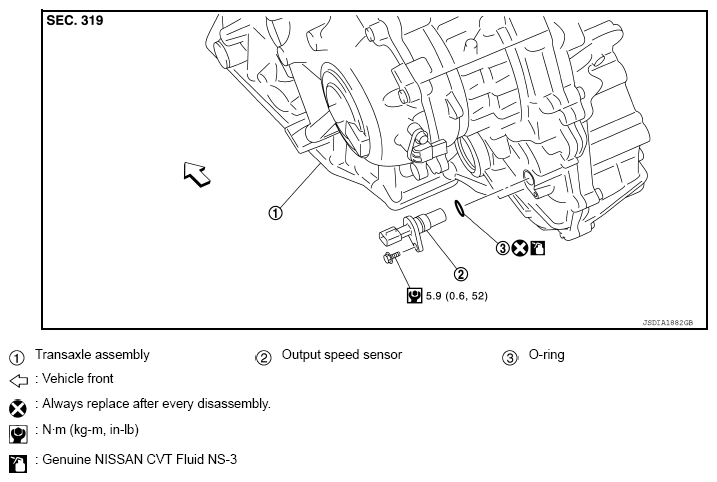

Fig 1: Transaxle Assembly, Output Speed Sensor And O-Ring With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
