Plug
›
Exploded View
Exploded View

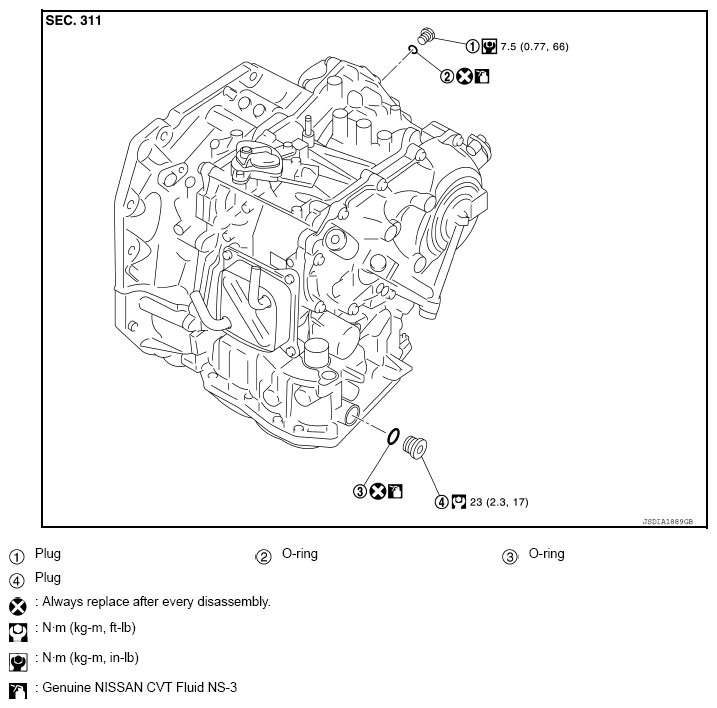

Fig 1: Plug And O-Ring With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
