Repair and Diagnosis
›
Transmission
›
Automatic Transmission (CVT)
›
Removal And Installation
›
Secondary Speed Sensor
›
Exploded View
Exploded View

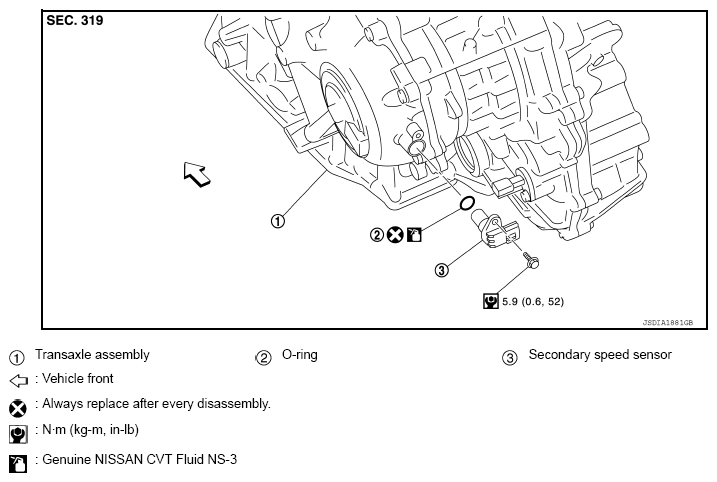

Fig 1: Transaxle Assembly, O-Ring And Secondary Speed Sensor With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
