Automatic Transmission (CVT)
›
System Description
›
System
›
CVT Control System
›

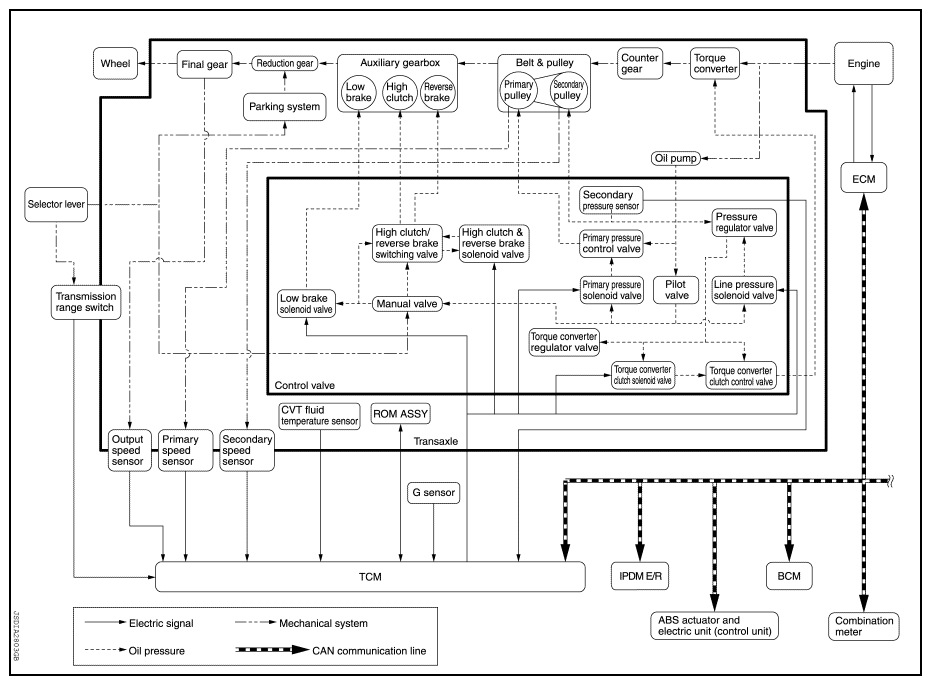

CVT CONTROL SYSTEM: System Diagram
CVT CONTROL SYSTEM: System Diagram
Fig 1: CVT Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
