DRIVER SIDE: Exploded View
DRIVER SIDE: Exploded View

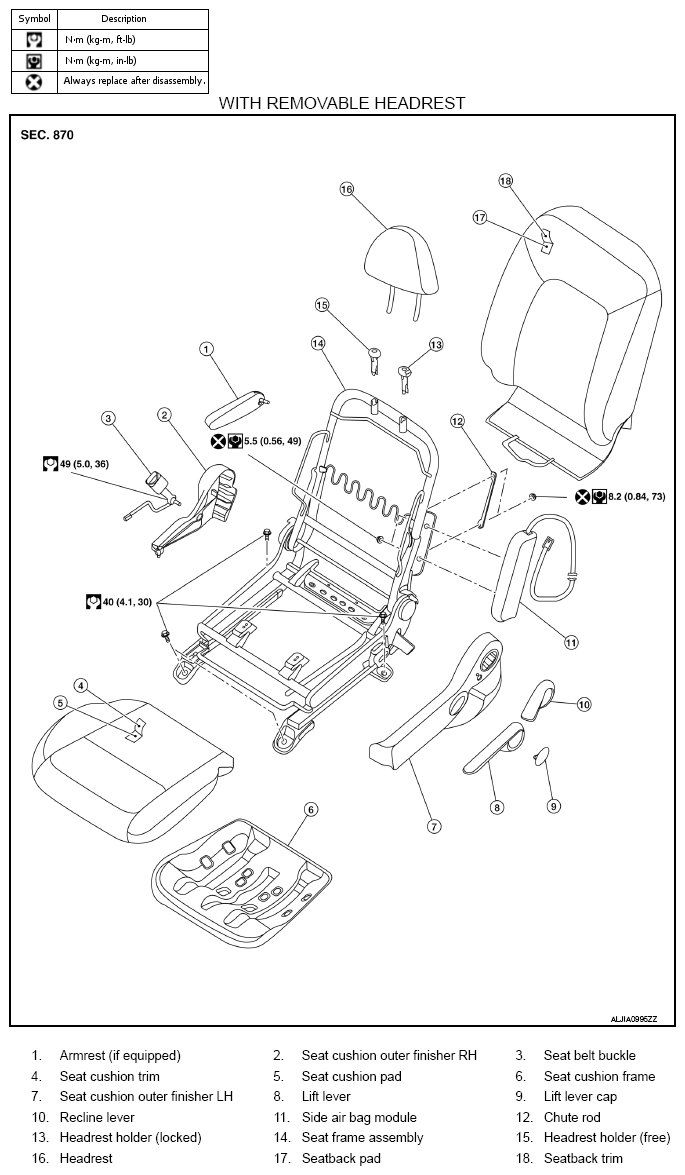

Fig 1: Exploded View Of Front Seat (Driver Side, With Removable Headrest)
Courtesy of NISSAN NORTH AMERICA, INC.

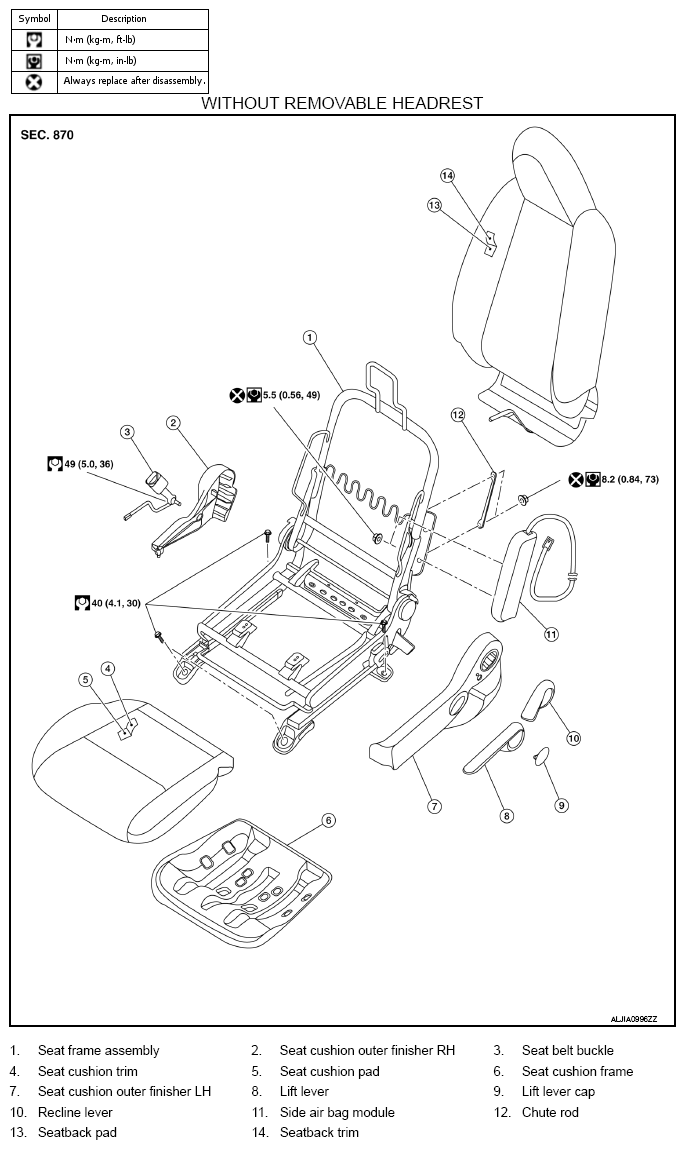

Fig 2: Exploded View Of Front Seat (Driver Side, Without Removable Headrest)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
