Nissan-Datsun
›
2013
›
Versa SL
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Starting System
›
Removal And Installation
›
Starter Motor
›
Exploded View
›
Disassembly And Assembly
Disassembly And Assembly

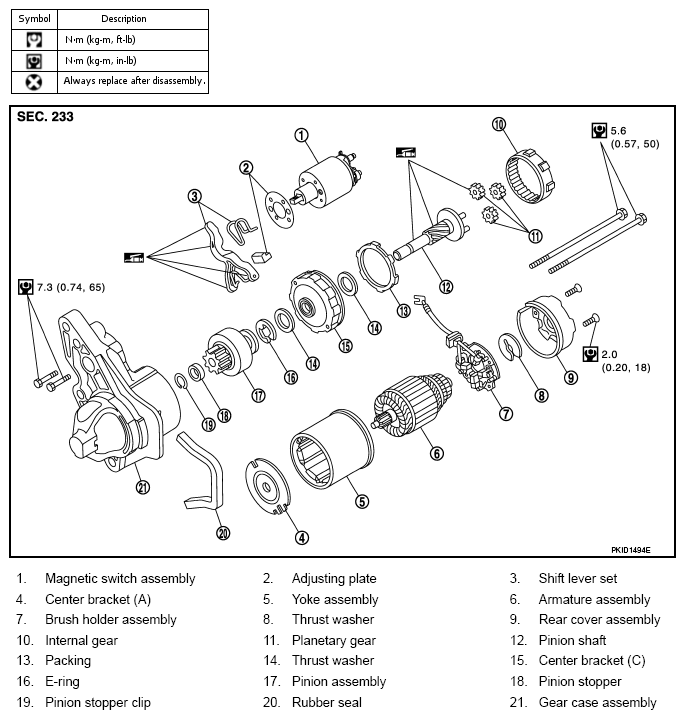

Fig 1: Disassembled View Of Starter Motor
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
