Engine Control System (Introduction)
›
System Description
›
System
›
Engine Control System
›
ENGINE CONTROL SYSTEM: System Diagram
ENGINE CONTROL SYSTEM: System Diagram

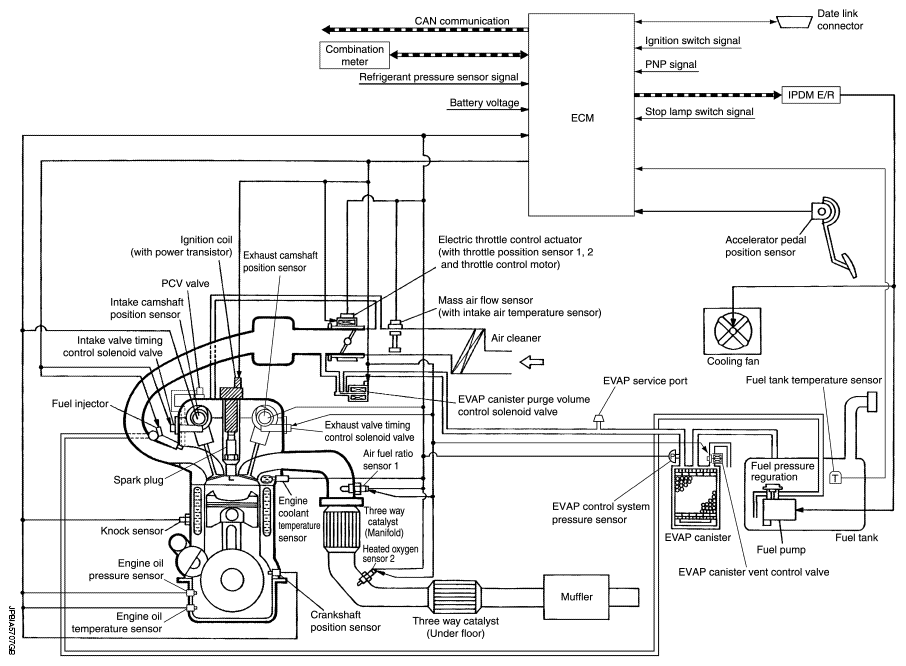

Fig 1: Engine Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
