Exploded View
›
Disassembly
Exploded View: Disassembly

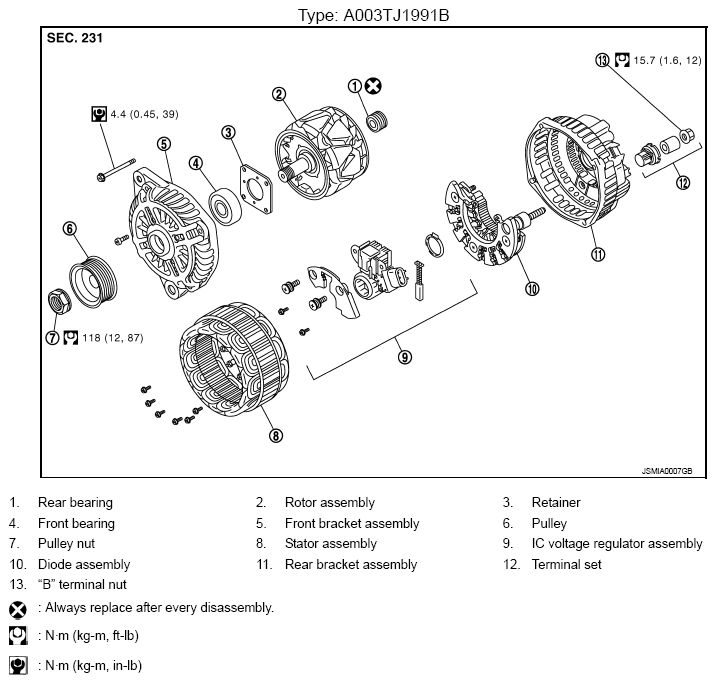

Fig 1: Disassembled View Of Alternator (Type A003TJ1991B) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
