Starter Motor
›
Exploded View
›
Disassembly
Exploded View: Disassembly

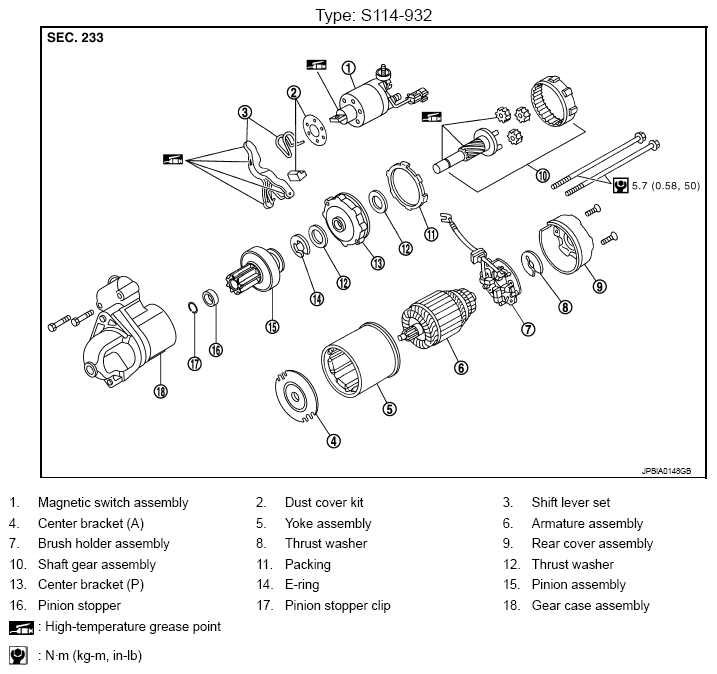

Fig 1: Disassembled View Of Starter Motor (Type - S114-932) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
