System - Engine Mechanical & Other

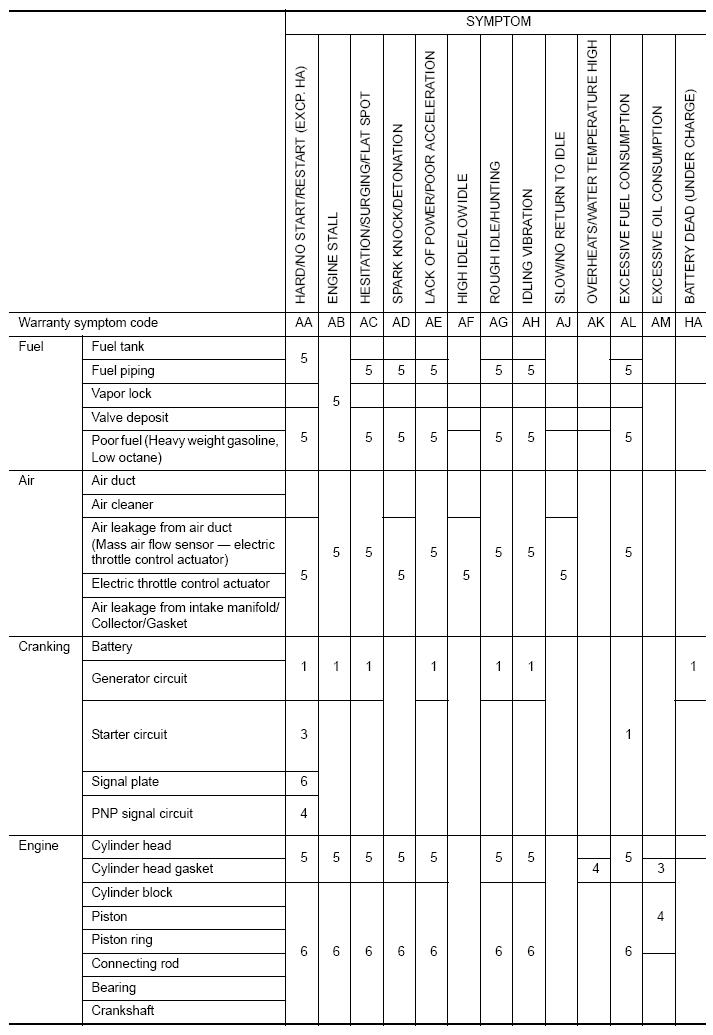

Fig 1: Engine Mechanical & Other System Symptom Table (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

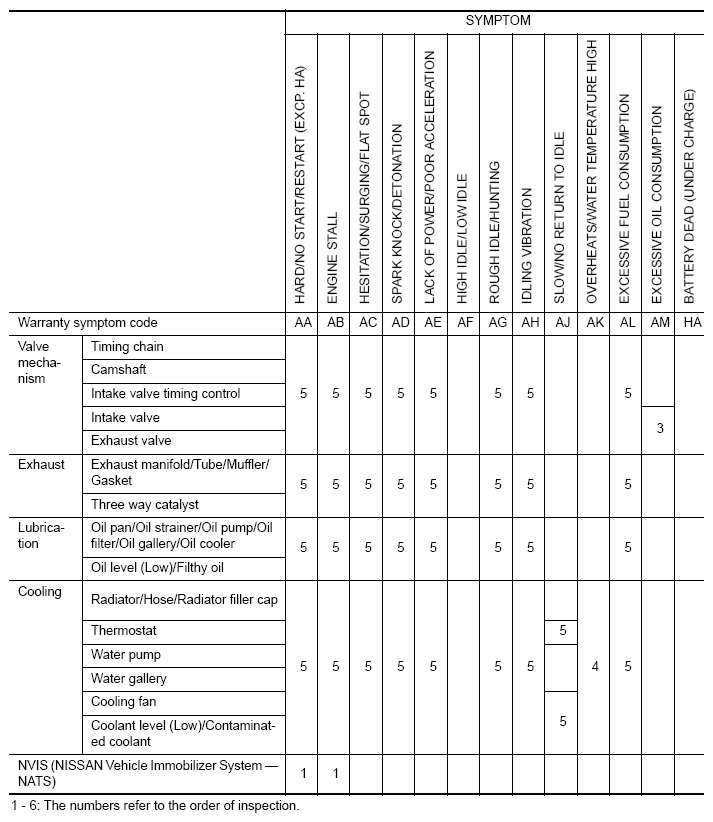

Fig 2: Engine Mechanical & Other System Symptom Table (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
