Nissan-Datsun
›
2014
›
Altima Base
›
Repair and Diagnosis (Single Page)
›
Accessories & Equipment
›
Communication Devices
›
Body Control System
›
Removal And Installation
›
Combination Switch
›
Exploded View
Exploded View

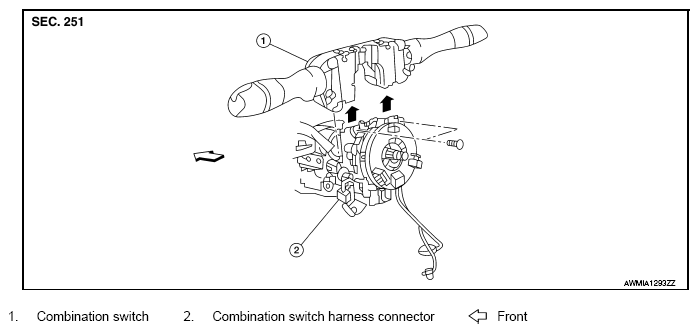

Fig 1: Exploded View Of Combination Switch
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Shown above with the steering wheel removed for clarity only.
Courtesy of NISSAN NORTH AMERICA, INC.
