Removal And Installation
›
Wheel Sensor
›

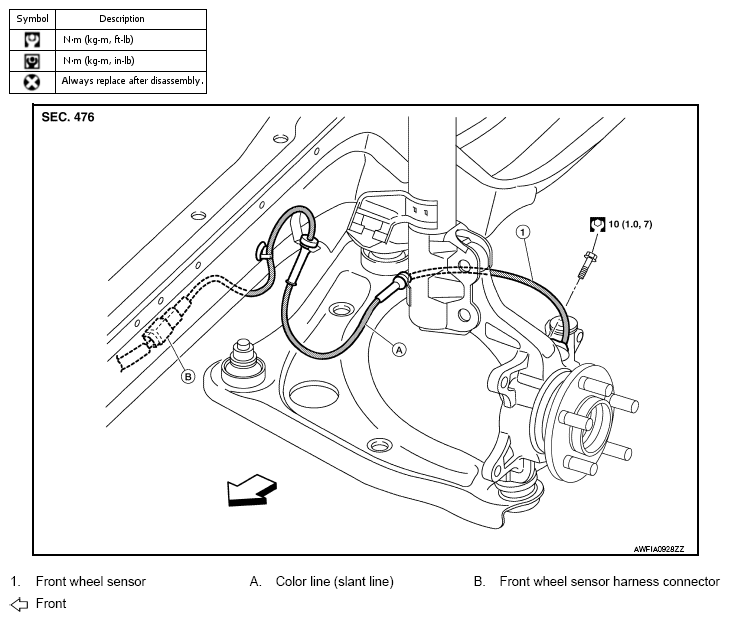

Exploded View - Front Wheel Sensor
Exploded View - Front Wheel Sensor
Fig 1: Front Wheel Sensor And Harness Connector With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
