Exploded View - Rear Wheel Sensor
Exploded View - Rear Wheel Sensor

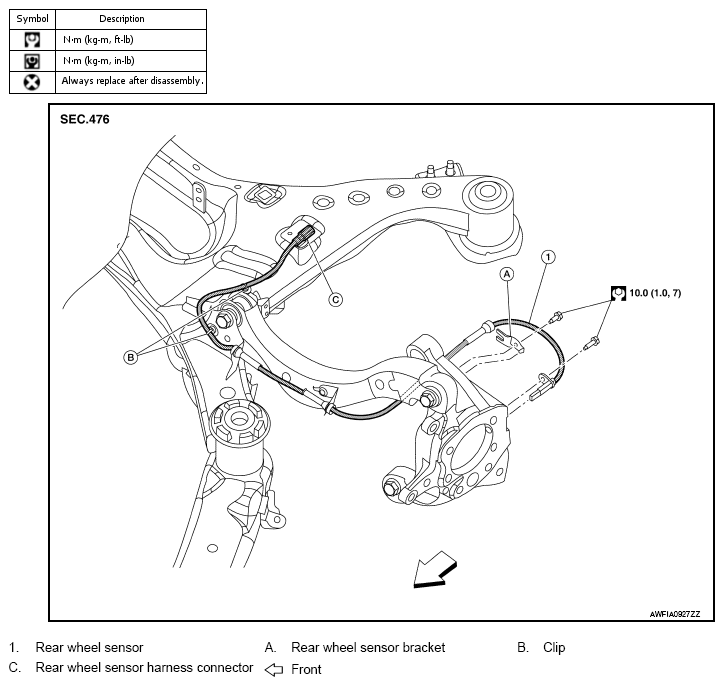

Fig 1: Rear Wheel Sensor And Harness Connector With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
