Removal and Installation: Removal

  1. Remove instrument pad (LH). Refer to "EXPLODED VIEW ".
  2. Release the pawl on each side of NATS antenna amp. (1) using a suitable tool and remove from the instrument pad (LH).

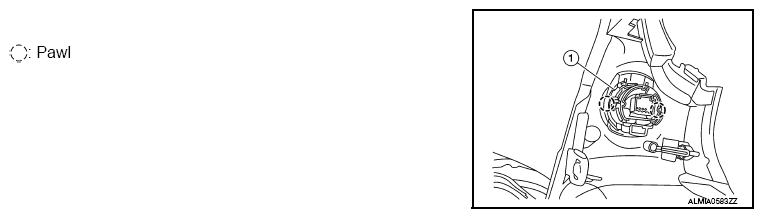

    Fig 1: Identifying NATS Antenna Amp.
    G09142816Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release the pawl on each side using a suitable tool and remove the push-button ignition switch from the NATS antenna amp.
