EVAP Control System Pressure Sensor
›
Exploded View
Exploded View

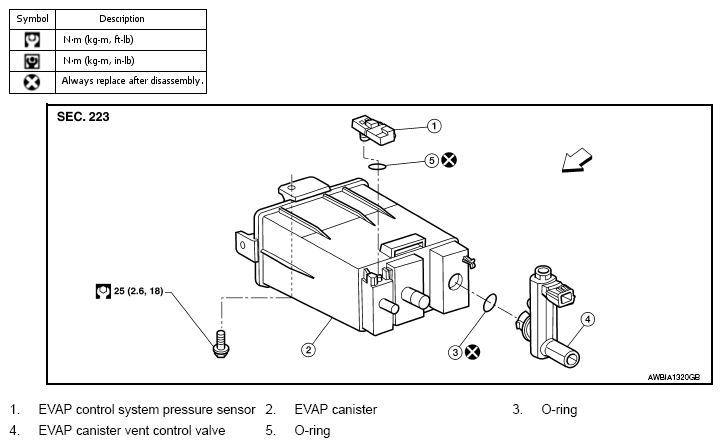

Fig 1: Exploded View Of EVAP Control System Pressure Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
