Section 4 (Engine Control System (Introduction) (VQ35DE))
›
System Description
›
System
›
Engine Control System
›
ENGINE CONTROL SYSTEM: System Description
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

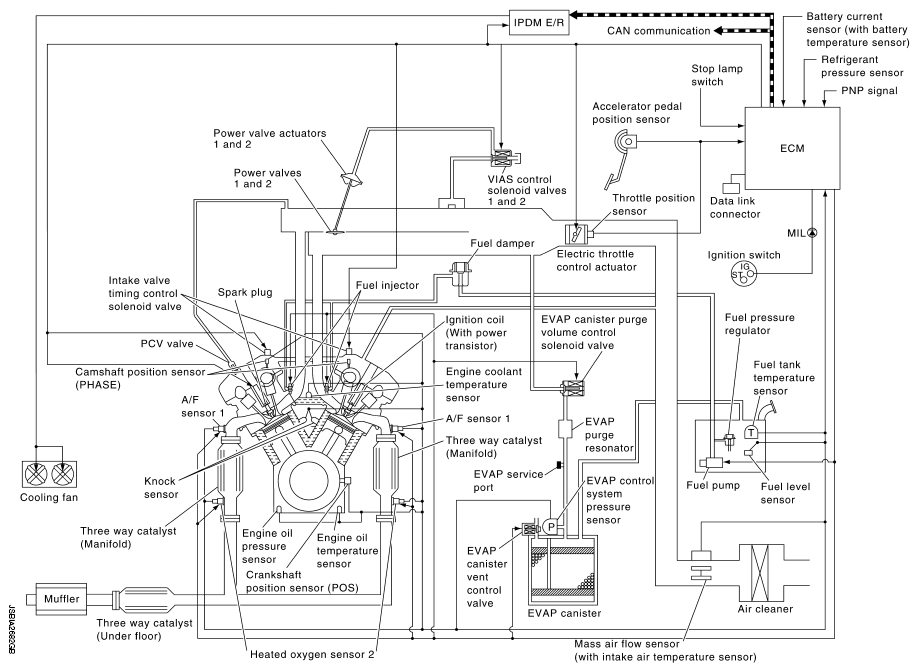

Fig 1: Engine Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
