Cube S, Automatic CVT Trans
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Window Control
›
Ecu Diagnosis Information
›
BCM (Body Control Module)
›
With Intelligent Key
›
Terminal Layout
Terminal Layout

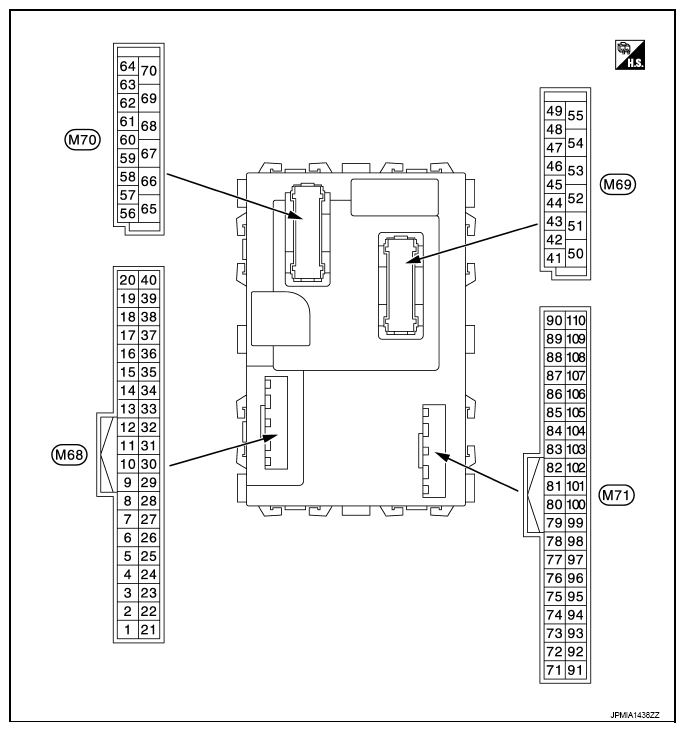

Fig 1: Body Control Module Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Connector color
M68, M70: Black
M69, M71: White
Courtesy of NISSAN NORTH AMERICA, INC.
