Exploded View: Disassembly

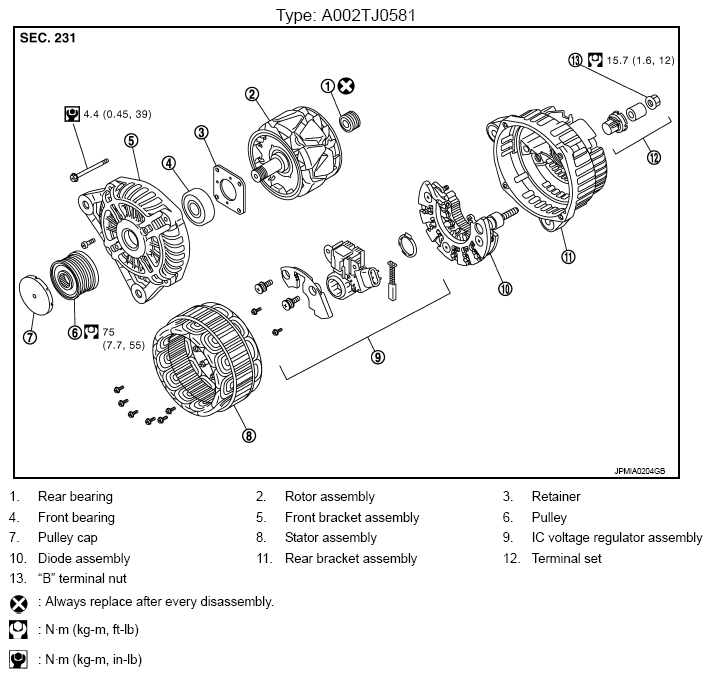

Fig 1: Disassembled View Of Alternator (A002TJ0581) With Torque Specifications
G09521931Courtesy of NISSAN NORTH AMERICA, INC.
