Power Control System (Power Distribution System)
›
DTC/Circuit Diagnosis
›
Power Distribution System
›
Connector End Views
Connector End Views

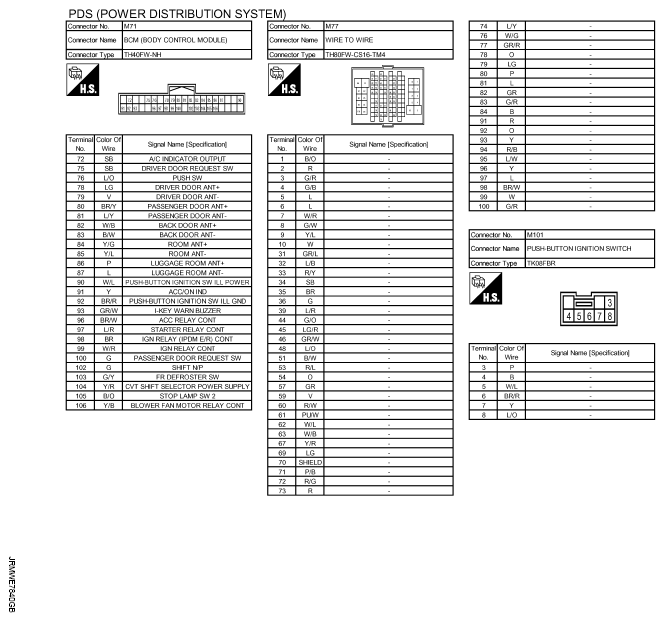

Fig 1: Power Distribution System Connector End Views (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

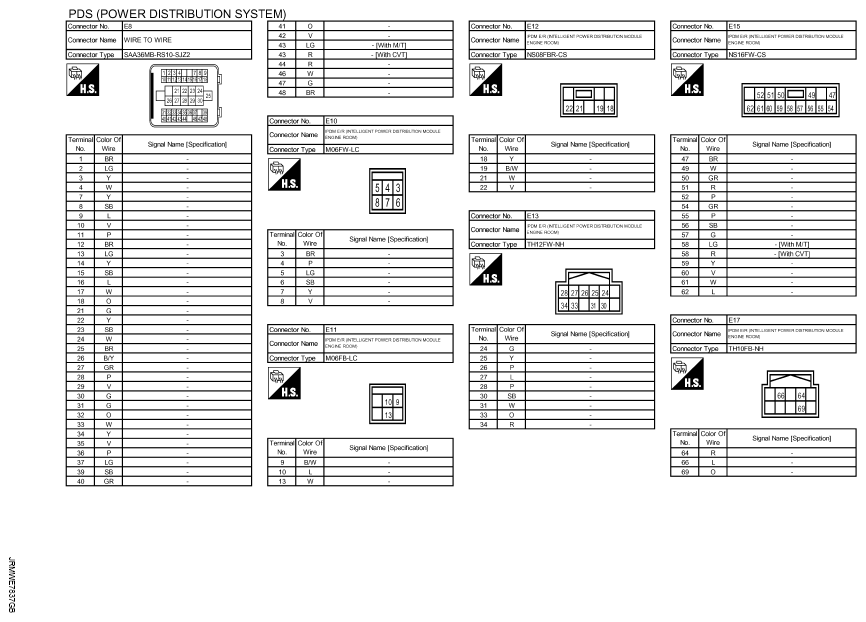

Fig 2: Power Distribution System Connector End Views (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

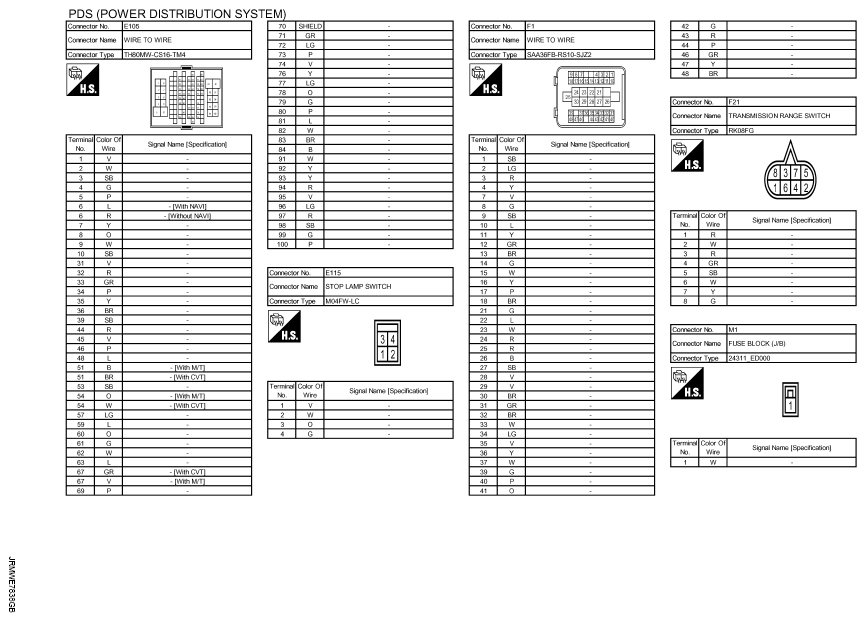

Fig 3: Power Distribution System Connector End Views (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

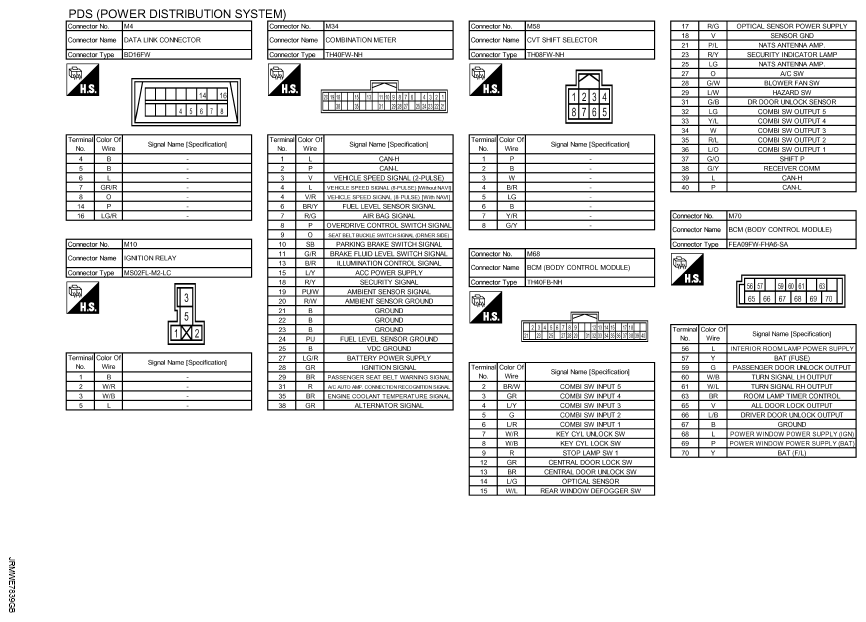

Fig 4: Power Distribution System Connector End Views (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
