Engine Control System (Diagnostic Codes & Symptom Tests)
›
Symptom Diagnosis
›
Engine Control System Symptoms
›
Symptom Table
›
System - Basic Engine Control System
System - Basic Engine Control System

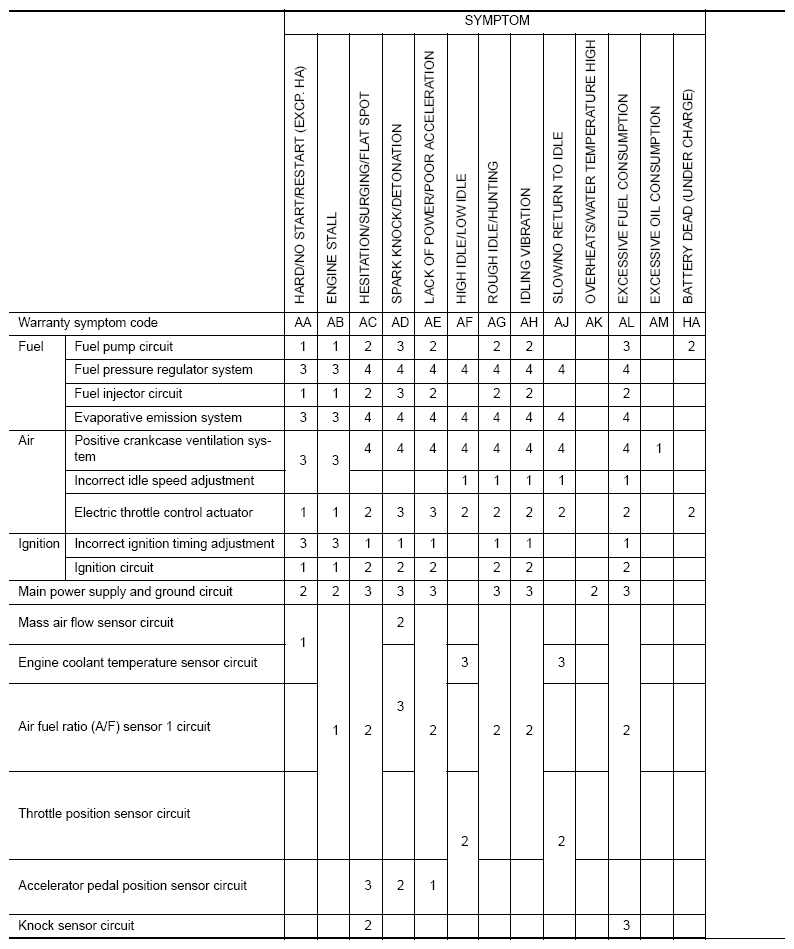

Fig 1: Engine Control System Symptoms Chart - Basic Engine Control System (1 Of 2)

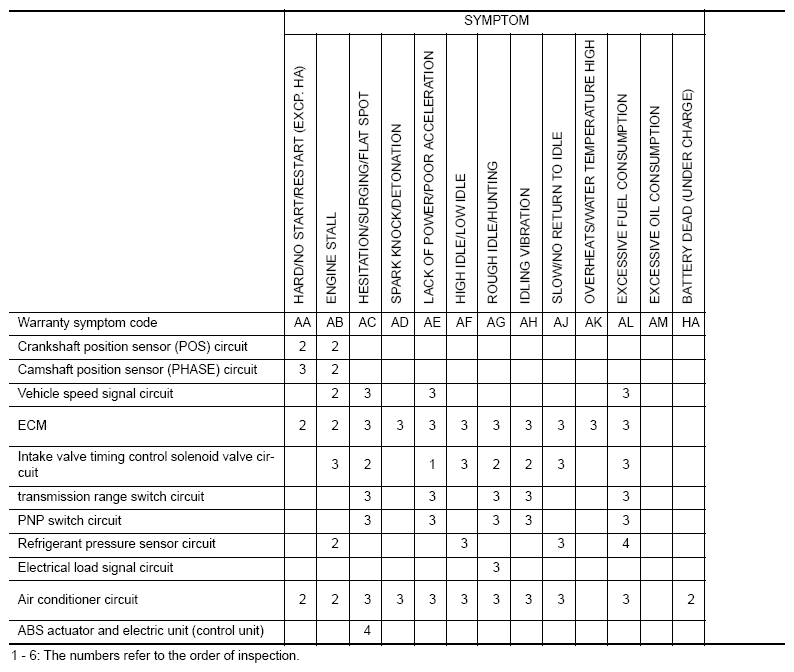

Fig 2: Engine Control System Symptoms Chart - Basic Engine Control System (2 Of 2)
