System Description
›
4WD System
›
System Description
›
4WD Shift Switch And Indicator Lamp
›
Notes
4WD Shift Switch And Indicator Lamp: Notes

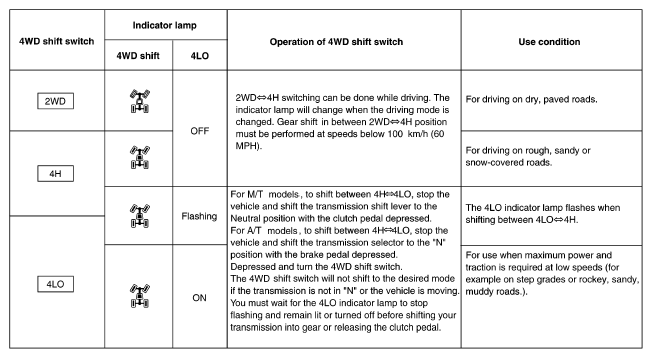

Fig 1: 4WD Shift Switch And Indicator Lamp Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
