Removal And Installation
›
Exhaust System
›
Exploded View
Exploded View

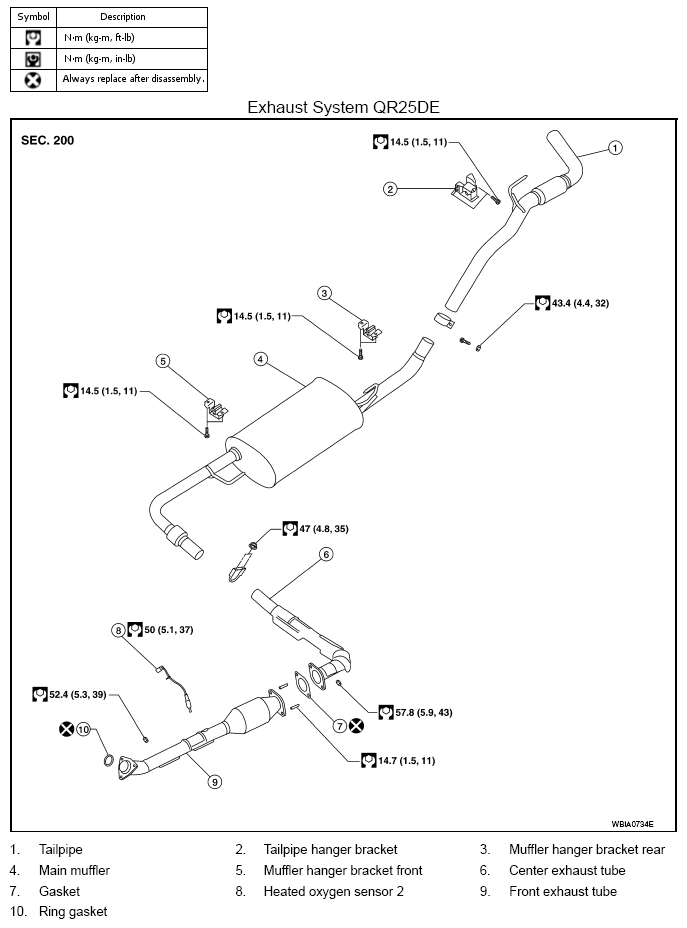

Fig 1: Exploded View Of Exhaust System (QR25DE) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

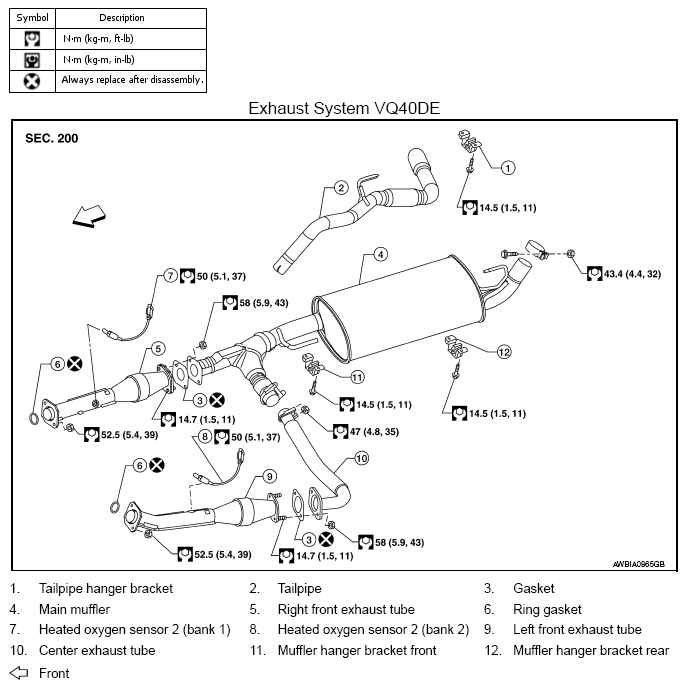

Fig 2: Exploded View Of Exhaust System (VQ40DE) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
