System Diagram

WARNING: This page is about a different car, the 2015 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

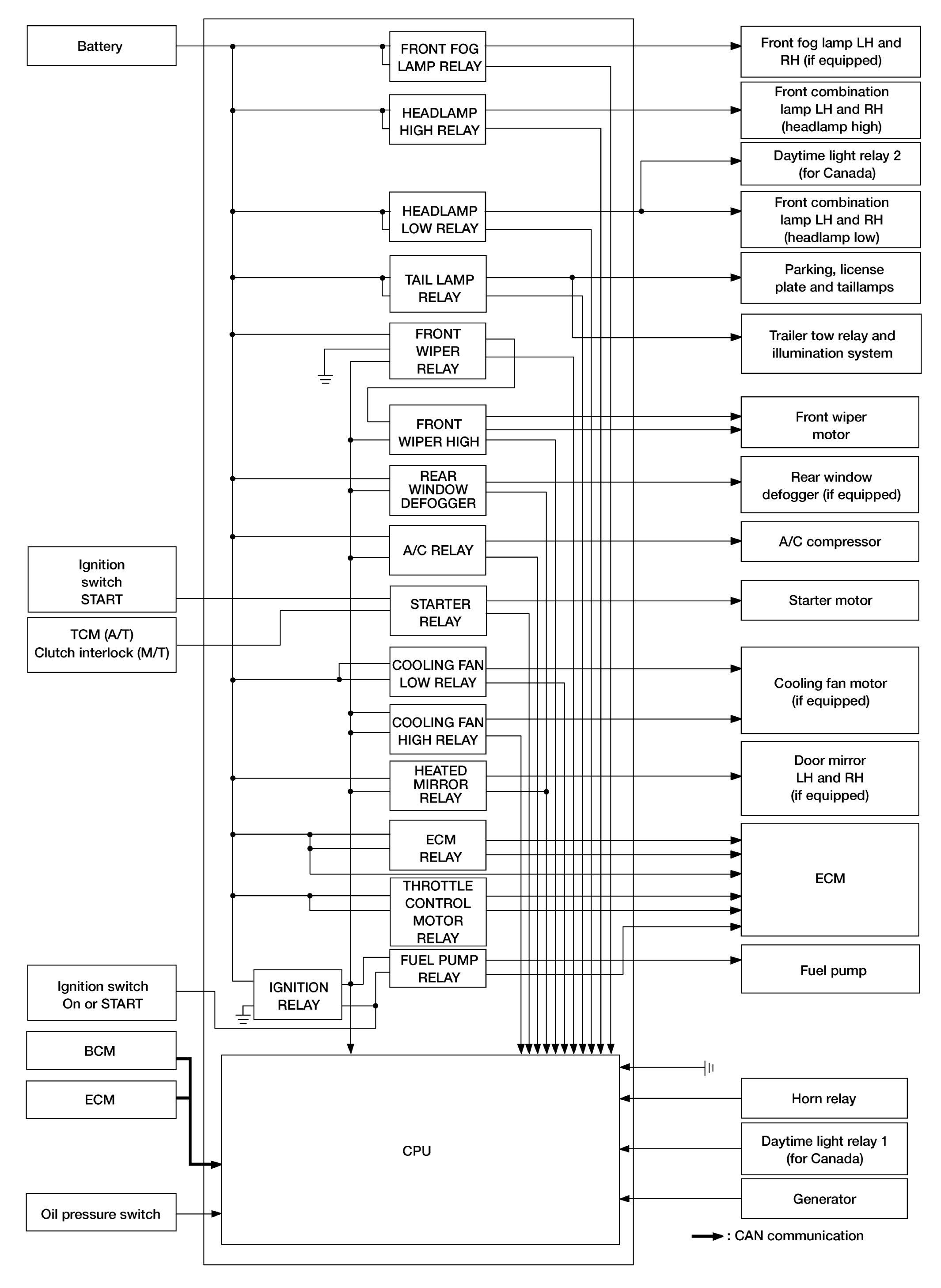

Fig 1: Relay Control System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.
