Cross-Sectional View
Cross-Sectional View

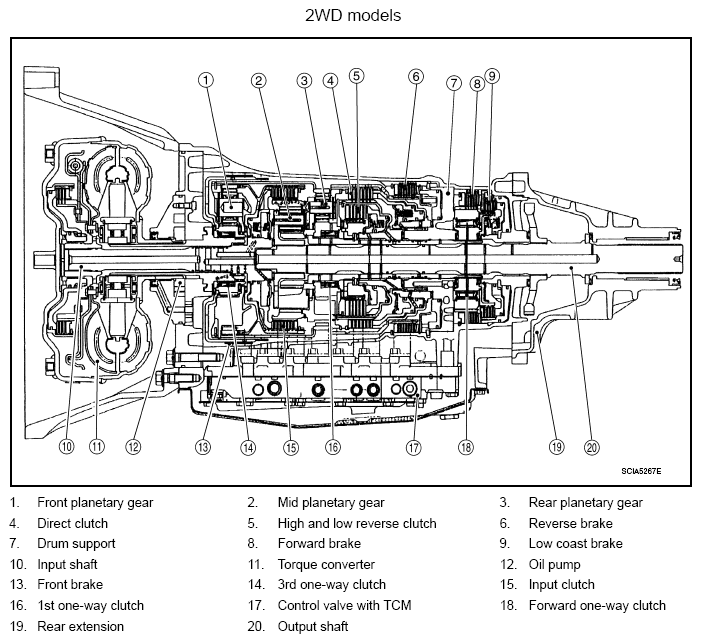

Fig 1: Cross-Sectional View Of A/T Control System (2WD Models)
Courtesy of NISSAN NORTH AMERICA, INC.

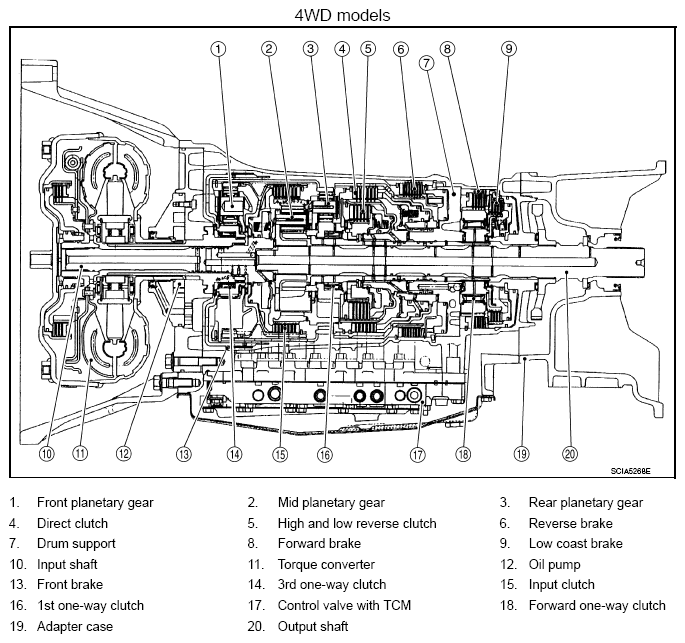

Fig 2: Cross-Sectional View Of A/T Control System (4WD Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
