Mode 6 - NISSAN
›
Juke 2014
Juke 2014

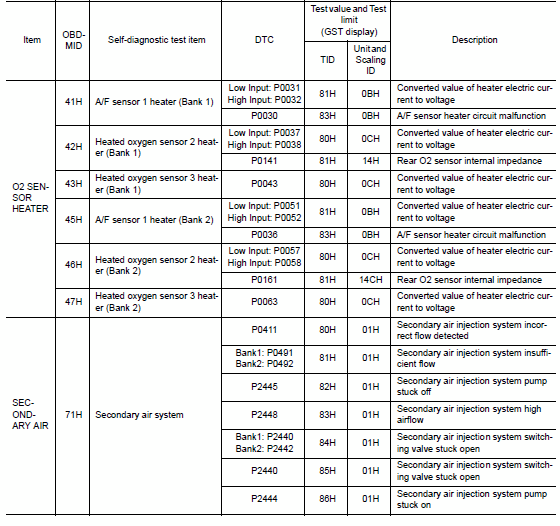

Fig 1: Mode $06 Data For Juke (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

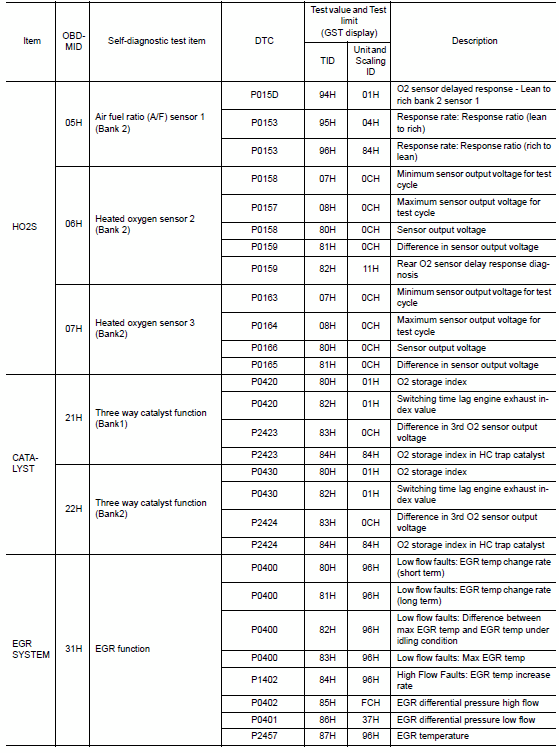

Fig 2: Mode $06 Data For Juke (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

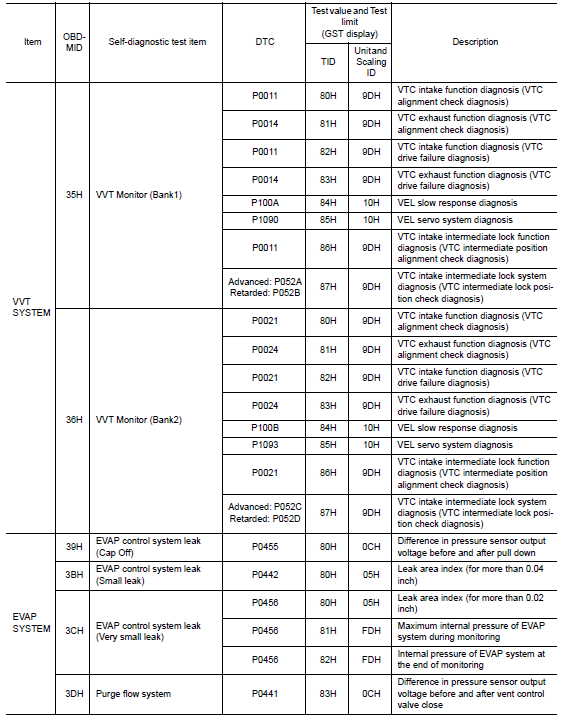

Fig 3: Mode $06 Data For Juke (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

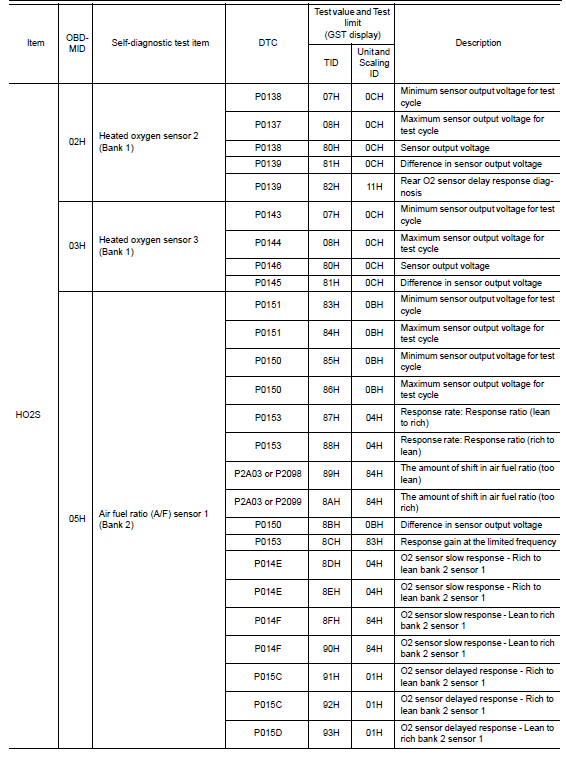

Fig 4: Mode $06 Data For Juke (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Mode $06 Data For Juke (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
