Exhaust System
›
Exploded View
Exploded View

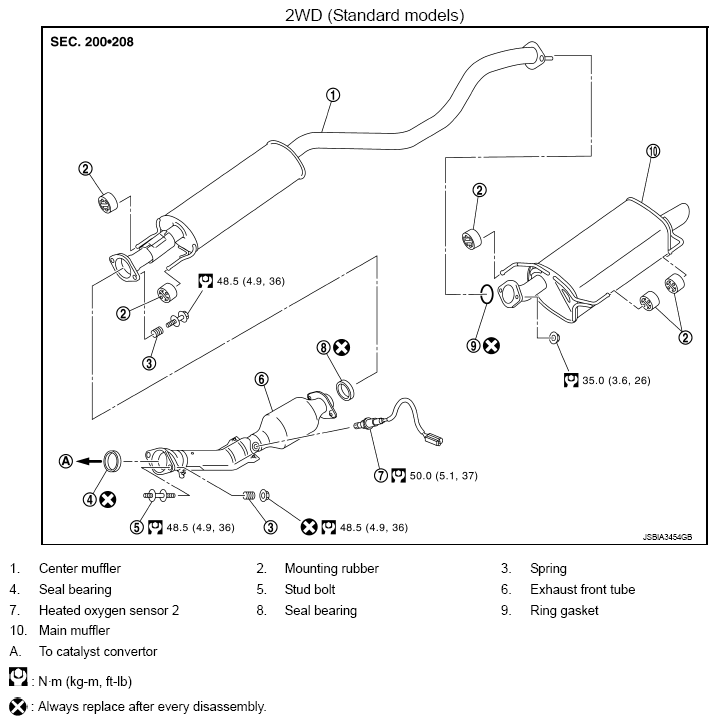

Fig 1: Exploded View Of Exhaust System - 2WD (Standard Models) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

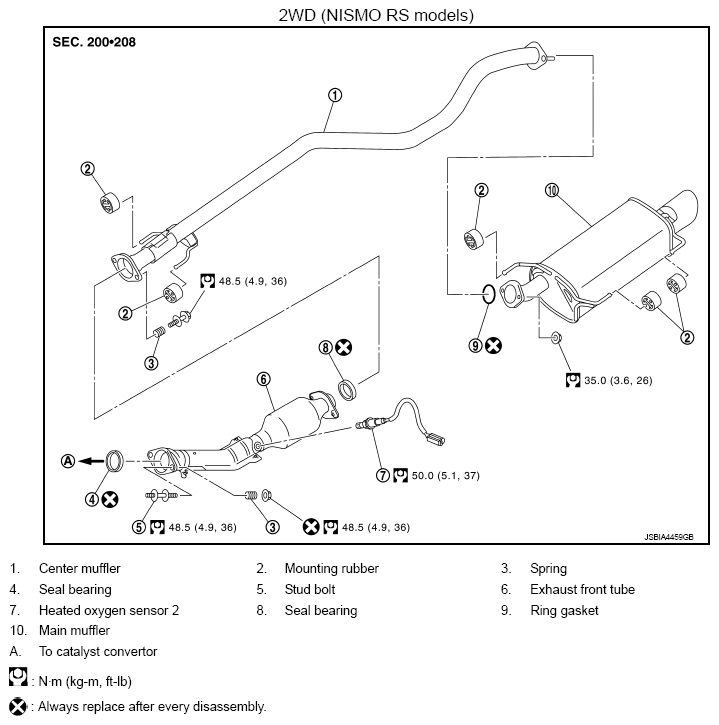

Fig 2: Exploded View Of Exhaust System - 2WD (Nismo RS Models) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

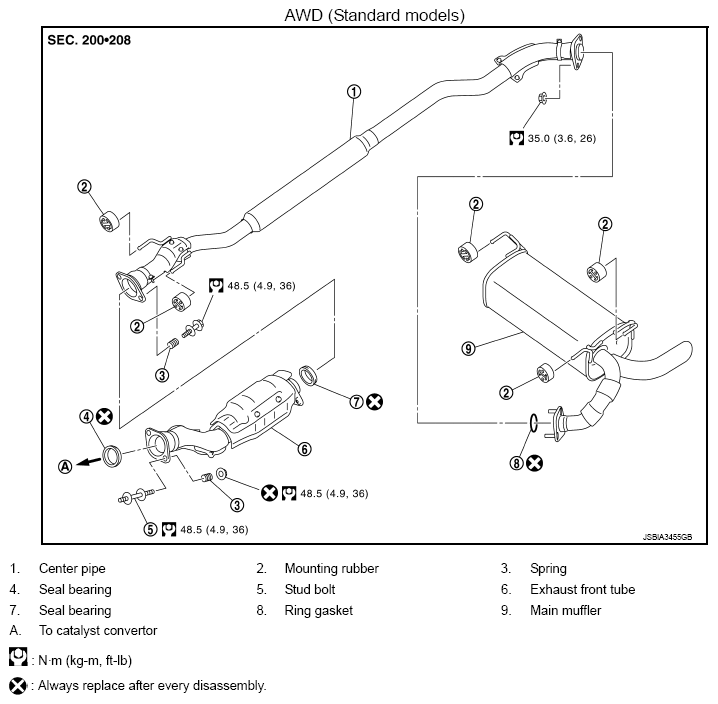

Fig 3: Exploded View Of Exhaust System - AWD (Standard Models) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

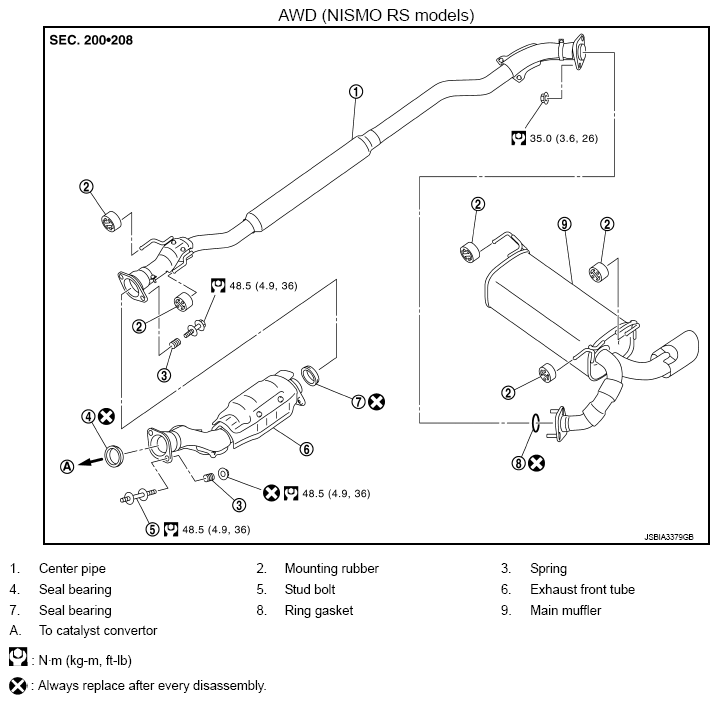

Fig 4: Exploded View Of Exhaust System - AWD (Nismo RS Models) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
