Juke SL, FWD, Standard Trans
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Window Control System
›
Wiring Diagram
›
Power Window System
›
Connector End Views
Connector End Views

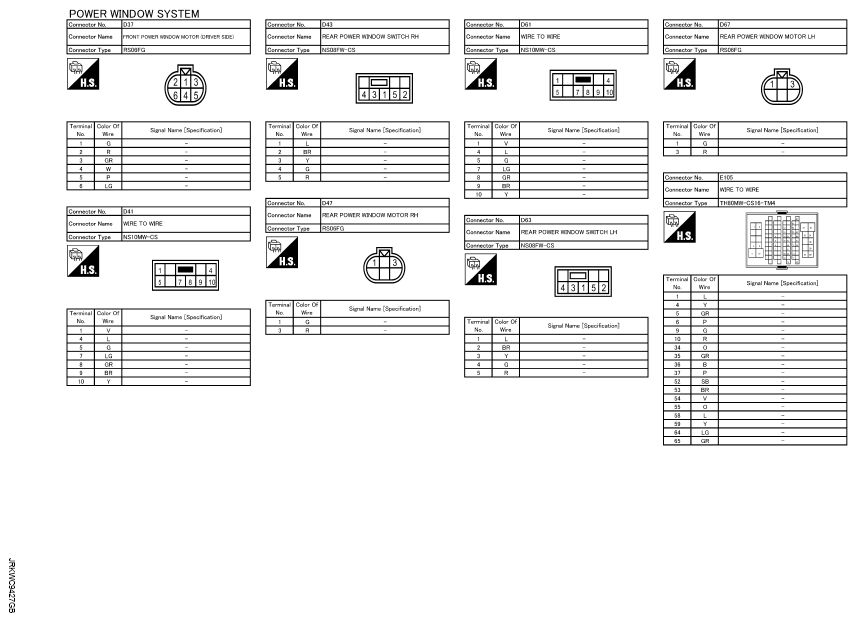

Fig 1: Power Window System Connector End Views (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

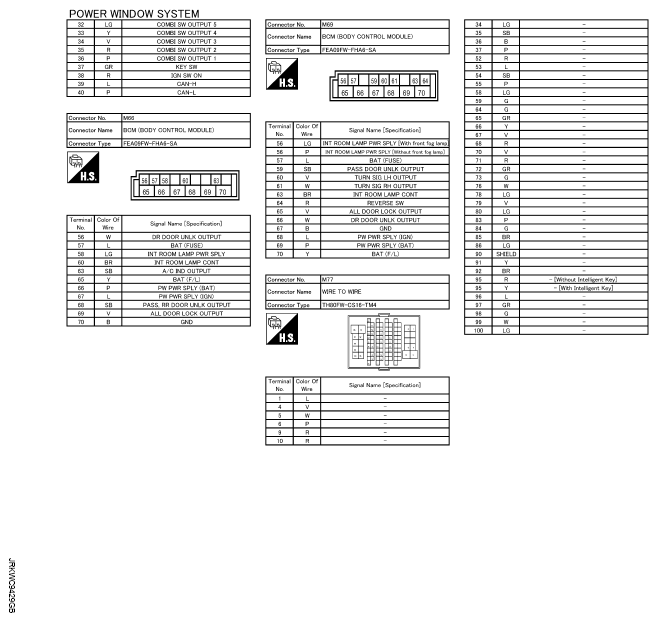

Fig 2: Power Window System Connector End Views (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

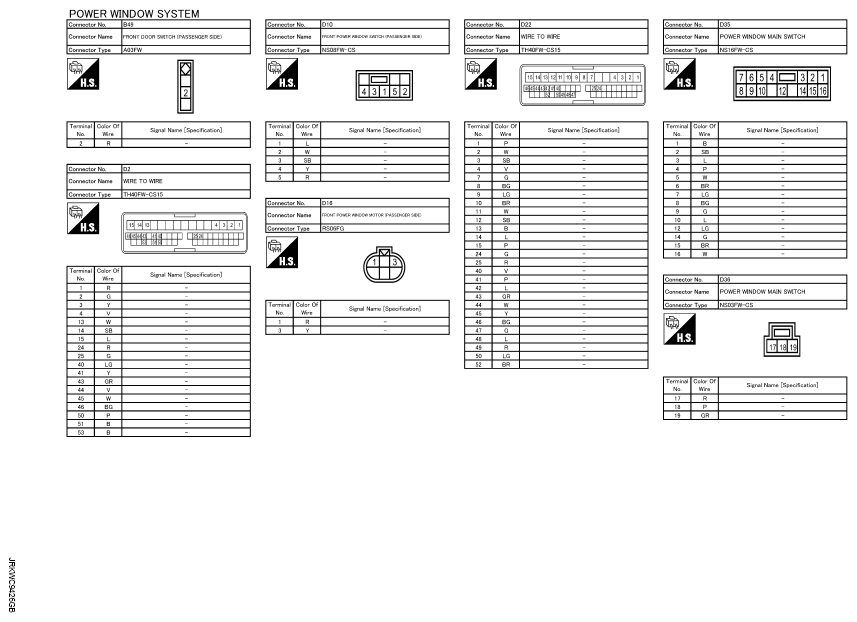

Fig 3: Power Window System Connector End Views (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

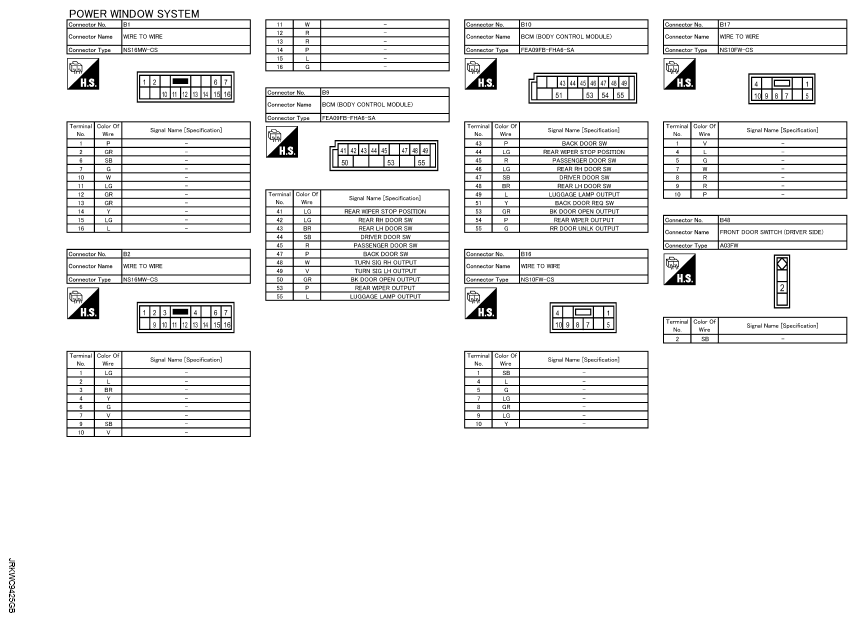

Fig 4: Power Window System Connector End Views (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

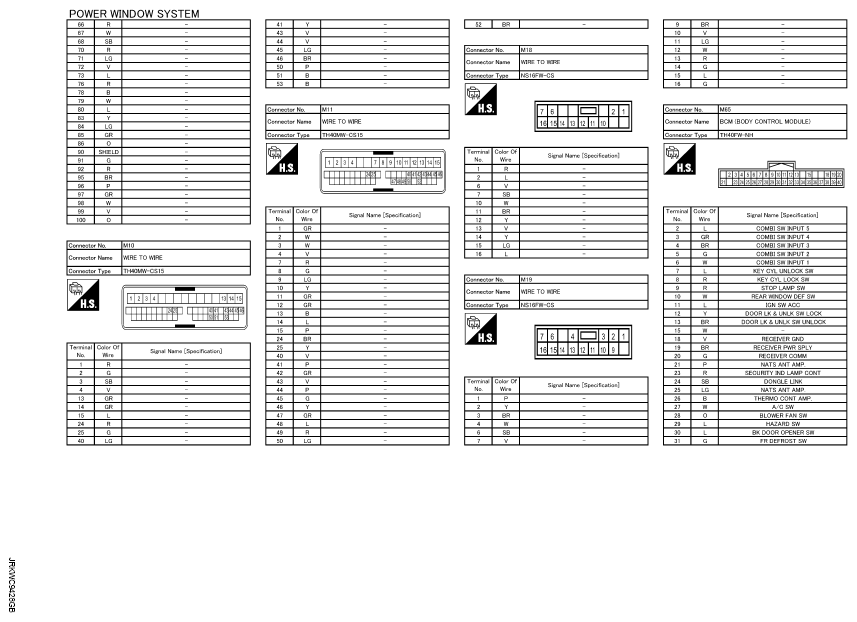

Fig 5: Power Window System Connector End Views (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
