Operation Characteristics

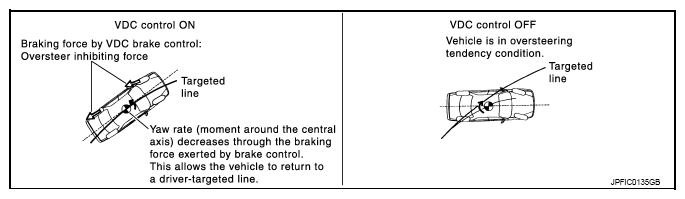

VDC Function That Prevents Oversteer Tendency

• During a cornering, brake force (brake fluid pressure) is applied on front wheel and rear wheel on the outer side of turn. Moment directing towards the outer side of turn is generated. Oversteer is prevented.
  Fig 1: Overview Of VDC Function (Oversteer Prevented)

  Courtesy of NISSAN NORTH AMERICA, INC.
• Changing driving lane on a slippery road, when oversteer tendency is judged large, engine output is controlled as well as brake force (brake fluid pressure) of 4 wheels. Oversteer tendency decreases.

Fig 2: Overview Of VDC Function (Oversteer Tendency Decreases)

Courtesy of NISSAN NORTH AMERICA, INC.

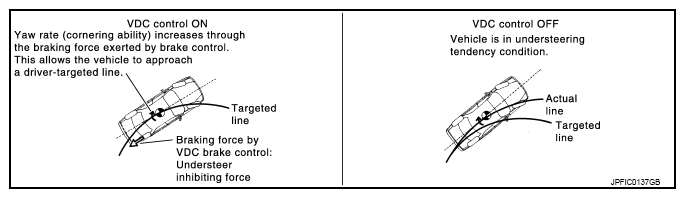

VDC Function That Prevents Understeer Tendency

• During a cornering, brake force (brake fluid pressure) is applied on front wheel and rear wheel on the inner side of turn. Moment directing towards the inner side of turn is generated. Understeer is prevented.
  Fig 3: Overview Of VDC Function (Understeer Prevented)

  Courtesy of NISSAN NORTH AMERICA, INC.
• Applying braking during a cornering on a slippery road, when understeer tendency is judged large, engine output is controlled as well as brake force (brake fluid pressure) of four wheels. Understeer tendency decreases.

Fig 4: Overview Of VDC Function (Understeer Tendency Decreases)

Courtesy of NISSAN NORTH AMERICA, INC.
